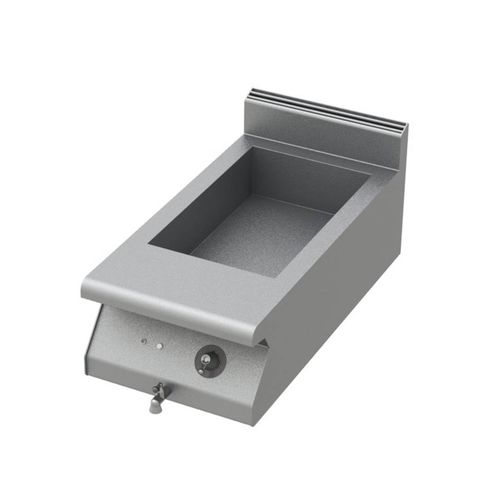

Electric bain-marie BM E GN 1/1 VF / UPPER ELEMENT - RC8

GN 1/1 electric Bain-Marie - Drainage on façade - 2.2 kW - Upper element only - Width 400 mm - Shielded stainless steel heating elements - Thermostatic regulation - Water tap 15/21 not connected PRESENTATION BM E GN 1/1 VF - RC8 Bain-Marie GN 1/1 electric with drainage on façade - Width 400 mm BM E GN 2/1 VF - RC8 Bain-Marie GN 2/1 electric with drainage on façade - Width 800 mm CONFORMITY •Comply with standards EN 60335-1 and EN 60529 •Electrical safety protection index IP 35 DESCRIPTION •304 stainless steel top, 30/10 thick. •Stainless steel side structures, 20/10 thick. •Upper elements to put on lower elements or flat surfaces, or for "bridge" assembly. •Stainless steel control panel with ergonomic profile. •Rounded front edges. •Top with back plate. WEIGHT 30 kg (BM E GN 1/1 VF) NC (BM E GN 2/1 VF) Bain-Marie •304 stainless steel kettle, 20/10 thick, with no internal parts making it easy to clean, heat insulated with high density insulating material. •Drainage pipe diameter 26 x 34 with same diameter 1" stop tap located on the façade. •Water tap 15/21 not connected. •Shielded stainless steel heating elements flanged under the kettle and regulated by a precision thermostat. •Each heating element has a stainless steel diffuser base, 30/10 thick. •Electric casing in stainless steel sheet, 15/10 thick, heat insulated with high density insulating material. •On / Off and control lamps. INT. DIMENSIONS OF THE KETTLE L. 305 x W. 510 x D. 160 mm (BM E GN 1/1 VF) (designed to take one GN 1/1 tray, H. 150 mm) L. 705 x W. 510 x D. 150 mm (BM E GN 2/1 VF) (designed to take one GN 2/1 tray or 6 GN 1/6 trays, H. 150 mm)
