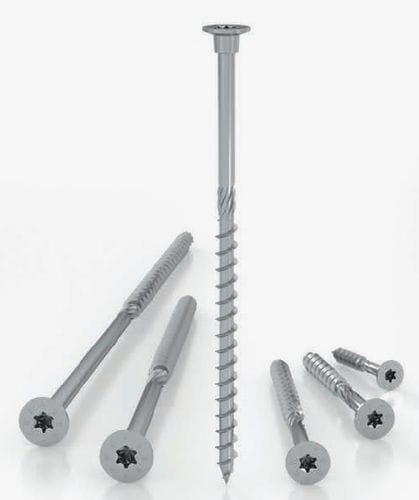

Exterior screws, pan head
Stainless steel AISI410
SPECIAL THREADING
Longer length (60%) asymmetric
”umbrella“ thread
FINE THREAD
Fine thread for the utmost precision
when tightening is complete
PAN HEAD
Guarantees an excellent surface
finish and the possibility of usage
on steel plates with circular holes
STAINLESS STEEL AISI410
Martensitic stainless steel
with an excellent balance
between mechanical resistance
and corrosion resistance
FIELDS OF USE
Exterior use; appropriate for
service classes 1-2-3
AESTHETICS AND PRECISION
The pan head with the flat under
head compresses the fibres when
tightening is complete and guarantees
a perfect aesthetic finish.
The fine thread guarantees the utmost
precision during tightening
TORSIONAL STRENGTH
The AISI410 martensitic stainless
steel has good torsional strength
(magnetic steel like carbon steel),
which means pre-bored holes can
be avoided in many situations
WIDE RANGE
Lengths available from 20mm
to 200mm for a vast range of
different applications
Applications
Fastening of exterior fences
Fastening of TERRALOCK PP
connector (long version) with
KKF screws
Fastening of TERRALOCK PP
connector (short version) with
KKF screws
