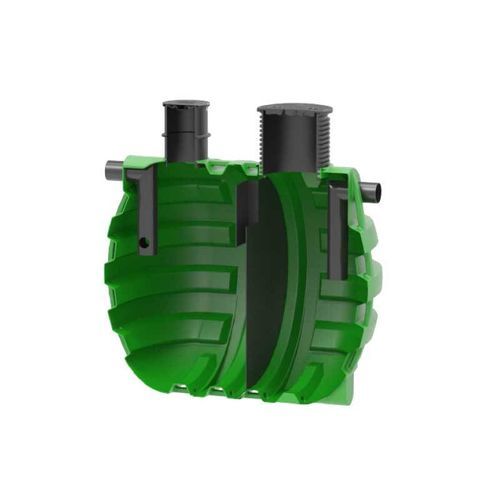

In-ground grease trap ROFETT

for commercial kitchenfor wastewaterpolyethylene

Overview
RoFett grease separators are horizontal, buried wastewater treatment units designed to separate fats and grease. Their large internal surface area reduces cleaning frequency, making them suitable for commercial kitchens and food-service facilities requiring underground installation.

Dimensions and available models (table)
500 L | 7400075310 | 1330 x 860 x 1000 mm | NG 1 | 200 meals | PDF available | Image available
1.000 L | 7400075370 | 1740 x 1060 x 1020 mm | NG 2 | 300 meals | – | Image available
2.200 L | 7400075320 | 1900 x 1400 x 2060 mm | NG 4 | 400 meals | PDF available | Image available
3.500 L | 7400075330 | 2100 x 1800 x 2450 mm | NG 6 | 700 meals | PDF available | Image available
5.000 L | 7400075360 | 2550 x 1800 x 2500 mm | NG 10 | 1.000 meals | PDF available | Image available
6.000 L | 7400075340 | 2900 x 1800 x 2500 mm | NG 15 | 1.500 meals | PDF available | Image available
8.000 L | 7400075390 | 2780 x 2300 x 2850 mm | NG 20 | 2.000 meals | PDF available | Image available
12.000 L | 7400777970 | 3760 x 2300 x 2850 mm | NG 25 | – | PDF available | Image available

Additional images (examples)
Multiple product images and renders are available showing RoFett units and series variants (NG 1, NG 2, NG 4, NG 6, NG 10, NG 15, NG 20, NG 25).

Technical characteristics / specifications

• Design: Horizontal grease separator intended for burial in the ground.
• Function: Separation of fats/grease from wastewater; large internal surface area reduces cleaning frequency.
• Range / series: RoFett NG series including NG 1, NG 2, NG 4, NG 6, NG 10, NG 15, NG 20, NG 25.
• Capacities (examples): 500 L (NG 1), 1.000 L (NG 2), 2.200 L (NG 4), 3.500 L (NG 6), 5.000 L (NG 10), 6.000 L (NG 15), 8.000 L (NG 20), 12.000 L (NG 25).
• Representative dimensions (A x B x C): from 1330 x 860 x 1000 mm (NG 1) up to 3760 x 2300 x 2850 mm (NG 25).
• Estimated servicing guidance: 'The amount of meals' per model (e.g. NG 1 = 200 meals; NG 10 = 1.000 meals; NG 15 = 1.500 meals; NG 20 = 2.000 meals).
• Documentation: Technical datasheets (PDF) available per model.
• Visuals: Product renders and images available per model.
