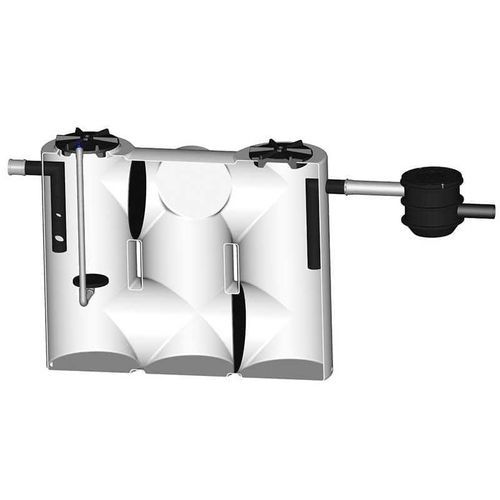

Kitchen grease trap BIOMAST

for wastewaterfor restaurantpolyethylene

Description
The BioMast NG 4 grease separator reduces fat content and controls pH for wastewater from kitchens and institutional catering. Designed for kindergartens, schools, restaurants and food distribution centers serving over 400 meals/day, nursing homes and similar facilities. The system performs mechanical separation of solids and fats, combined with biological fat degradation and integrated pH regulation. It includes a dosing cabinet with bacteria and a dosing station with a peristaltic pump for controlled NaOH dosing.

How it works

• Incoming wastewater enters the separator where an initial compartment reduces flow velocity to allow sedimentation of solids and sludge.
• Fats, being lighter, rise to the surface and are separated from the effluent.
• A dosing cabinet at the inlet houses a biological dosing station and a peristaltic pump for pH control.
• NaOH (base) is dosed at the inlet to adjust acidity and meet required outlet pH limits.
• Bacteria supplied by the dosing station biologically degrade fats into CO2 and water.

Applications

• Kindergartens and schools
• Restaurants and catering operations (recommended for >400 meals/day)
• Food distribution businesses (>400 meals/day)
• Nursing homes and other institutional kitchens

Dimensions
Volume | Code | Dimensions A x B x C [mm] | Plan (PDF available) | Render (image available) | Inquiry
2.300 | 7400075690 | 2180 x 700 x 1725 | PDF available | Render available | Inquiry option present

Technical specifications

• Model: BioMast NG 4
• Function: Mechanical separation of solids and fats plus biological fat degradation
• Integrated pH regulation (NaOH dosing and peristaltic pump)
• Biological dosing station with bacteria for fat biodegradation
• Tested on NG4 grease trap with flow rate q = 4 L/s
• Recommended capacity: 400–700 meals/day
• Volume (example model): 2.300
• Product code (example): 7400075690
• Dimensions (example model): 2180 x 700 x 1725 mm (A x B x C)
• Complies with standard: SIST EN 1825-1
• Installation plan (PDF) and product renderings available
