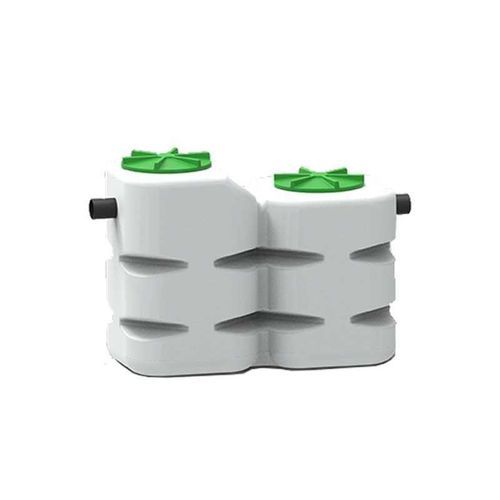

Free-standing grease trap ROMAST

under sinkhomecommercial

Overview

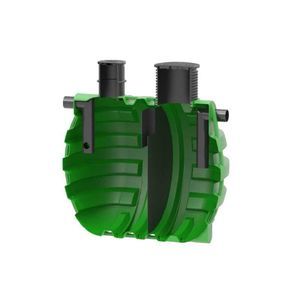

The RoMast grease separators are compact, self-contained units designed to separate fats and oils from wastewater. They are suitable for under-sink installation or placement in a basement/technical room and are intended for domestic and small commercial wastewater flows.

Applications

• Under-sink domestic installations
• Basement or technical-room installation
• Small commercial kitchens

Available variants

• RoMast NG 0,25 (100 L)
• RoMast NG 0,5 (250 L)
• RoMast NG 1 (500 L)
• RoMast NG 2 (1.000 L)
• RoMast NG 4 (2.000 L)

Dimensions and connections (by model)

• 100 L — Code: 7400778100 — Dimensions A x B x C: 530 x 530 x 420 mm — NG: NG 0,25 — Pipe diameter DN: 110 mm — Datasheet: 7400778100 RoMast 0,25 NG_Technical sheet FR.pdf
• 250 L — Code: 7400777880 — Dimensions A x B x C: 600 x 600 x 928 mm — NG: NG 0,5 — Pipe diameter DN: 110 mm — Datasheet: 7400777880 RoMast 0,5 NG_Technical sheet FR.pdf
• 500 L — Code: 7400777940 — Dimensions A x B x C: 760 x 760 x 1100 mm — NG: NG 1 — Pipe diameter DN: 110 mm — Datasheet: 7400777940 RoMast 1 NG_Technical sheet FR.pdf
• 1.000 L — Code: 7400778580 — Dimensions A x B x C: 1520 x 760 x 1150 mm — NG: NG 2 — Pipe diameter DN: 110 mm — Datasheet: 7400778580 RoMast 2 NG_Technical sheet FR.pdf
• 2.000 L — Code: 7400075290 — Dimensions A x B x C: 2250 x 750 x 1600 mm — NG: NG 4 — Pipe diameter DN: 160 mm — Datasheet: 740075290 RoMast 4 NG_Technical sheet FR.pdf

Features and key points

• Mechanical separation of fats by sedimentation.
• Self-contained unit suitable for under-sink or technical-room installation.
• Multiple capacities available (100 to 2,000 L) covering nominal flows NG 0,25 to NG 4 L/s.
• Connection diameters specified per model (see dimensions list).
• Dedicated technical datasheets available for each model.

Specifications / Technical data

• Commercial series: RoMast
• Capacities: 100 L, 250 L, 500 L, 1,000 L, 2,000 L
• Product codes: 7400778100 (100 L), 7400777880 (250 L), 7400777940 (500 L), 7400778580 (1,000 L), 7400075290 (2,000 L)
• Dimensions (A x B x C) by model: see list above
• Nominal flow (NG): NG 0,25 / 0,5 / 1 / 2 / 4 L/s depending on model
• Recommended pipe diameters: DN 110 mm for most models, DN 160 mm for NG 4 (2,000 L)
• Installation: under-sink or technical room (basement)
• Primary use: separation of fats from domestic wastewater and small commercial applications
