Rectangular glass brick TECHNOLOGY

microbeadsfor partition wallfacade

Description Glass bricks designed to provide technical solutions for architectural projects: fire resistance, thermal and acoustic insulation, bullet-resistant variants, light control and technical options adapted to public buildings and contemporary architecture.

General characteristics

• Glass bricks available with different technical properties (fire-resistant, acoustic, thermal, bullet-resistant, light-control).
• Traditional mortar installation (mortar joints).
• Dimensions and weight vary according to model and required performance.

Main models and performances

• Fire-resistant bricks: resistance from 30 to 120 minutes depending on the requirement.
• Acoustic bricks: performance declared by DoP (standard EN-717-1:2020) — Basic: 37 dB; Pegasus: 39 dB; Technology (e.g. 19x19x16 cm): up to 49 dB.
• Bullet-resistant: BSH20 model rated FB4 according to DIN 52290-2 and EN 1522 for high-security applications.
• Light control: specific models to redirect or diffuse light.
• Thermal insulation: traditional Basic and Pegasus (U ≈ 2.8 W/m²K and 2.6 W/m²K). Basic available in Energy Saving (U ≈ 1.4 W/m²K). HTI range (19x19x16 cm) with U ≈ 1.8 W/m²K.

Applications

• Counter
• Shower wall
• Partition wall

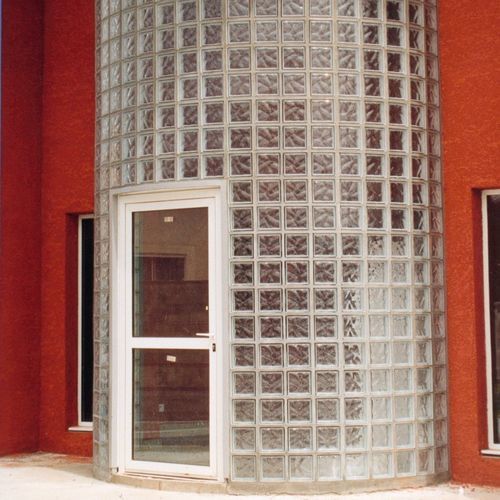

• Facade
• Interior and exterior use

Colours

• Clear
• Blue
• Nordica
• Sienna

Installation and care

• Installation technique: traditional mortar laying (approx. 2 mm joints).
• Maintenance: routine cleaning appropriate for the material (no detailed specifications provided on the page).

Technical specifications

• Installation: masonry with mortar joints (~2 mm).
• Dimensions: variable by model and required characteristics (e.g. 19x19x16 cm for certain ranges).
• Fire resistance: 30 to 120 minutes depending on the model.
• Acoustic insulation: Basic 37 dB; Pegasus 39 dB; Technology up to 49 dB (values per declaration of performance).
• Bullet resistance: BSH20 — FB4 rating (DIN 52290-2, EN 1522).
• Light control: models for redirection or diffusion of light.
• Thermal performance (U): Basic ≈ 2.8 W/m²K; Pegasus ≈ 2.6 W/m²K; Basic Energy Saving ≈ 1.4 W/m²K; HTI (19x19x16 cm) ≈ 1.8 W/m²K.
• Applications: interior/exterior, modular facades, partitions, shower walls, counters.
