PVC architectural membrane ARCADE FR
polyesterfabriccoated

PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
PVC architectural membrane
Add to favorites
Compare this product


Characteristics

Material
fabric, coated, PVC, polyester, PES
Applications

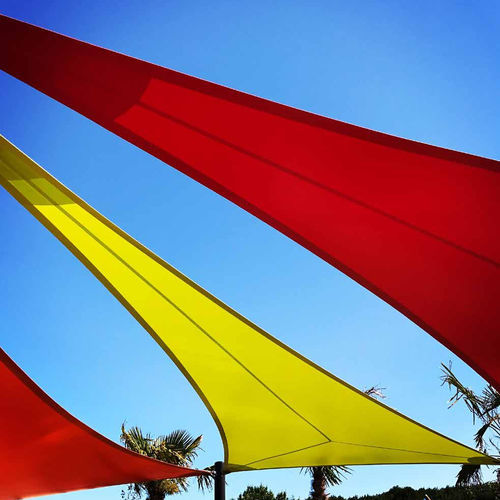

for tensile structures, solar shading, for pergola
Membrane characteristics
fire-retardant, water-repellent, high-resistance
Other characteristics
colored, solar protection, 100% recyclable

Description

Made from PVC coated polyester, this fabric provides the following advantages: Lightweight (500g/m²) to retain its suppleness and to facilitate shaping and tautness. A Cleangard® topcoat finish to facilitate maintenance. Excellent UV resistance for longevity. A range of 11 colours. 3.02 m width to minimise seams (more aesthetically pleasing). Our patented Lowick System guarantees long life and suppleness. Base cloth 550 dTex PES HT 495 den Coating PVC Lowick coating both side Finish Cleangard lacquer both sides Weight > ISO 3801 500 g/m² Tensile strength > NF EN ISO 1421 150 / 150 daN/5cm Tear strength > DIN 53.363 15 / 15 daN Adhesion > NF EN ISO 2411 7 daN/5cm Elongation under load > NF EN 15619 <1% / NF EN 15619 <0.4% / NF EN 1876-2 -30 °C Warm resistance > (24h) 70 °C Fire resistance > NF P 92 503 / DIN 4102 / BS 7837 / Euroclasses EN 13501-1 / NFPA 701 / CSFM Title 19 M2 / B1 / BS / B-S2-D0 / NFPA 701 / CSFM Title19
