Fabric architectural membrane SUNBLOCK
coatedPVCPES

Add to favorites

Compare this product

Go to the Saint Clair Textiles website for more information

Characteristics

Material: fabric, coated, PVC, PES
Applications: for tensile structures, solar shading, for pergola
Membrane characteristics: fire-retardant, water-repellent, high-resistance, with solar control
Other characteristics: colored, solar protection, 100% recyclable

Description

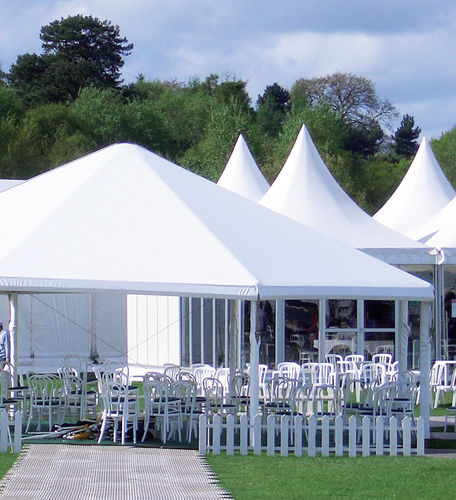

SUNBLOCK is a PVC coated, 100% opaque fabric designed for marquees and tents for events. This product, which has a very high thermal deflection ratio, ensures optimum comfort in areas with strong sunlight. Large size structures may be made, due to its mechanical strength. Now available in grain and 3D finish. Base cloth 1100 dTex PES HT 990 den Coating PVC Lowick coating both side Finish Cleangard lacquer both sides Weight > ISO 3801 850 g/m² Tensile strength > NF EN ISO 1421 260 / 250 daN/5cm Tear strength > DIN 53.363 32 / 28 daN Adhesion > NF EN ISO 2411 8 daN/5cm Elongation under load > NF EN 15619 <1% / NF EN 15619 <0.4% / NF EN 1876-2 -30 °C Warm resistance > (24h) 70 °C Fire resistance > NF P 92 503 / DIN 4102 / BS 7837 / Euroclasses EN 13501-1 / NFPA 701 / CSFM Title 19 M2 / B1 / BS / B-S2-D0 / NFPA 701 / CSFM Title19
