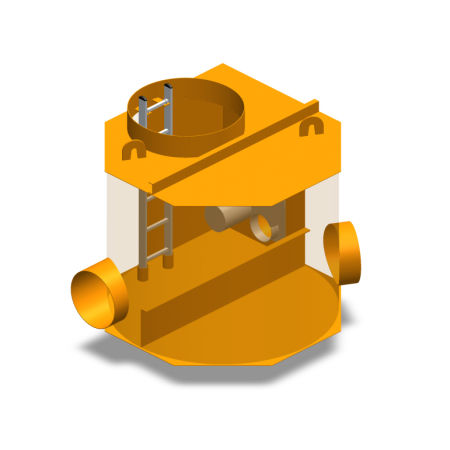

Basin stormwater management module DOVR

in-ground

Compactness: optimised design thanks to high-performance and well-dimensioned internal equipment High performance: built-in flow control, dimensioned to prevent any overflow as long as the nominal flow rate has not been reached Adaptability: tailored design making it possible to consider many configurations with networks up to DN 1200 mm Easy to implement: structure factory equipped and set, ready-to-install 10-year warranty via insurance supplemented by an Epers Structure intended to control the flow rate towards the treatment and to manage excess flows via overflow on rainwater or combined networks Spillway of regulated flow to storm including a FLOREG type of flow regulator and a nappe respecting the hydraulic network. Made from S235 steel assembled on flat bottoms, protected after SA 2.5 sanding according to ISO 8501-1 with a hot polymerised polyurethane coating 600 µm thick Flow rate controller made from 304L stainless steel of the FLOREG type Headwater dimensioned to remove the peak flow rate in compliance with the hydraulics of the network Controlled flow storm water overflow of the DOVR type is designed and dimensioned for a perfect control of the flow rate to treatment. The controlled flow is reached before any overflow. Excess flow rates are managed by the overflow in compliance with the hydraulics of the network. Each structure is subject to a hydraulic validation using the data of the project. Overflow screening system - DEGSURVERSE Standardised ladder - ECH Detection of the number of overflows - COMPTEUR Cathodic protection - ANODEINT and ANODEEXT Risers - REH and Buffers - COUV
