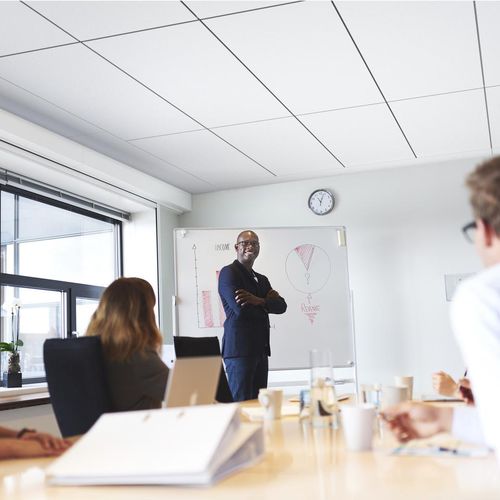

For applications where a unique demountable suspended ceiling is required. The edge design of the system conceals the support edges of the tile and creates a distinctive floating appearance. The suspension grid is approximately 14 mm above the visible surface of the tile, which gives the impression that each tile is individually suspended.The tiles are easily demountable even in areas where there is a very small overall depth of system. The systems consist of Ecophon Focus™ Dg tiles and Connect™ grid systems, with an approximate weight of 3-4 kg/m². The tiles are manufactured from high density glass wool. The visible surface has an Akutex™ FT coating and the back of the tile is covered with glass tissue. The edges are painted. For best performance and system quality, use Connect™ grid and accessories. The grid is manufactured from galvanized steel. The tile is patented in the US, and patent pending in Europe.
Installation diagrams: M202
Additional systems Ecophon Focus Edge™ 500Ecophon Focus™ Frieze,
Akutex™ FT-A modern surface available in many colours and for most products.
The Akutex™ FT surface in combination with the glass wool core provides optimal sound absorption. Compared to Akutex™ T, the average pore size is less than half, with the number of pores being doubled, but the superior acoustic properties are still retained. With the smaller pores, the product is even more dirt repellent, making the surface easier to clean. Note: Colours may vary slightly between different production batches. Reproduction of colours vary between print and reality.
