Fixed shower screen POLARIS SUPER

swingcornertempered glass

Description

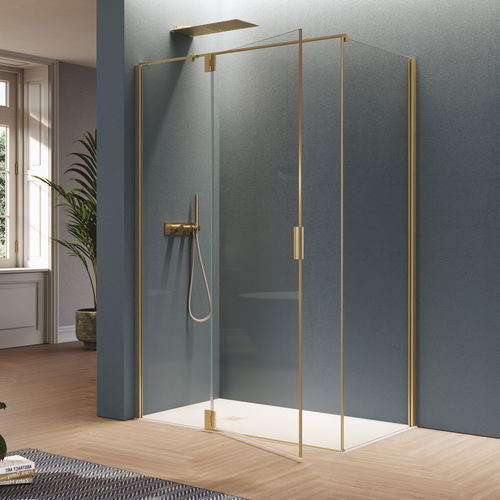

Corner shower enclosure composed of a hinged door with an inline fixed panel plus an additional fixed side panel. The door opens both inward and outward. A visually striking model available in larger dimensions than a conventional door.

Type

• Hinged door with inline fixed panel + fixed side panel (hinges)
• Opening: bidirectional (inward and outward)
• Configuration: corner with door + inline fixed panel + fixed side panel

Profiles - Available finishes

• Gun Metal Brushed 'GMB'
• Mat Sky 'L65'
• Matt Marine Blue 'L92'
• Matt Carbon 'L63'
• Matt Sand 'L98'
• Brushed Nickel 'SNK'
• Matt Ice 'L90'
• Matt Taupe 'L99'
• Matt Black 'L96'
• Matt White 'L91'
• Matt Mauve 'L64'
• Brushed Bronze 'AL4'
• Matt Lead 'L80'
• Polished Bright 'ULU'
• Matt Linen 'L70'
• Brushed Gold 'GLB'
• Matt Sage 'L73'

Tempered glass panels - Types

• Grey Satin 'GS'
• Mirror 'SY'
• Extra-clear Glass 'TE'
• Satin Band H.100 'RF'
• Patterned Glass 'ST'
• Satin Glass 'AS'
• Grey Transparent 'TG'
• Transparent Glass 'TR'

Photo gallery - Image notes
Product images are available in the product gallery; image labels indicate glass/finish codes (e.g. GLB_TR).

Documentation available
Product data sheet, spare parts, assembly instructions (technical documents available for the model).

Features / Technical specifications

• Commercial model: POLARIS Super
• Type: Hinged door with inline fixed panel + fixed side panel (hinges)
• Door opening: both inward and outward
• Dimensional availability: available in larger sizes than a traditional door
• Profiles and finishes: see finishes list (Gun Metal, Nickel, Bronze, Brushed Gold, various matt tones Lxx, etc.)
• Available glass types: TR, TG, TE, AS, ST, SY, GS, RF (different finishes and treatments)
• Technical documents available: product sheet, spare parts, fixed panel spare parts, assembly instructions
• Detailed measurements for door and fixed panel items (see table below)

Measurements (table)
Door
Item - Extendability [cm] - Opening [cm]
B3220 - 67-69 - 39.9
B3221 - 72-74 - 43.1
B3222 - 77-79 - 49.1
B3223 - 82-84 - 49.1
B3224 - 87-89 - 55.1
B3225 - 97-99 - 60.1
B3226 - 107-109 - 65.1
B3227 - 117-119 - 70.1
B3228 - 137-139 - 70.1

Fixed side panel
Item - Extendability [cm] - Opening [cm]
B3040 - 67-69 - //
B3041 - 69-71 - //
B3042 - 72-74 - //
B3043 - 74-76 - //
B3044 - 77-79 - //
B3045 - 79-81 - //
B3046 - 82-84 - //
B3047 - 84-86 - //
B3048 - 87-89 - //
B3049 - 89-91 - //
B3050 - 97-99 - //
B3051 - 99-101 - //
B3052 - 107-109 - //
B3053 - 109-111 - //
B3054 - 117-119 - //
B3055 - 119-121 - //
