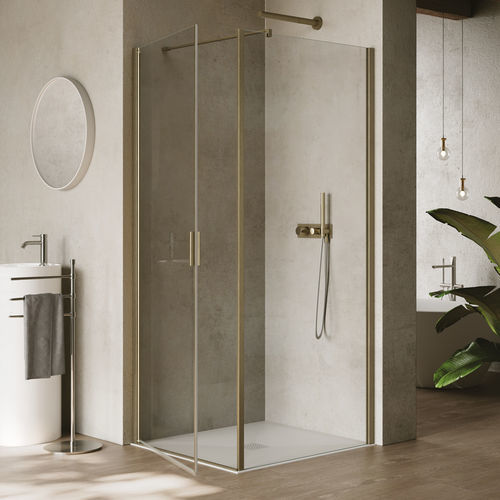

Swing shower screen HINGED DOOR + FIXED WALL B2941
cornertempered glasscustom-made

Swing shower screen - HINGED DOOR + FIXED WALL B2941 - SAMO - corner / tempered glass / custom-made
Swing shower screen - HINGED DOOR + FIXED WALL B2941 - SAMO - corner / tempered glass / custom-made
Swing shower screen - HINGED DOOR + FIXED WALL B2941 - SAMO - corner / tempered glass / custom-made - image - 2
Add to favorites
Compare this product
Go to the SAMO website for more information

Characteristics

Opening system
swing
Location
corner
Door material
tempered glass
Options
custom-made, anti-limescale
Glass finishes
clear glass, silk-screened glass, satin-finish glass, smoked glass, frosted glass, tinted glass, sandblasted glass
Glass thickness
6 mm
Profile type
framed
Profile finish
aluminum, white, black, chrome, stainless steel, high-gloss, golden, matte black, satin, lacquered, copper-colored, brushed stainless steel
Market
commercial
Width

Max.: 99 cm
(38.98 in)

Min.: 67 cm
(26.38 in)

Height

200 cm
(78.74 in)

Description

Description
Corner shower enclosure in an angle configuration composed of a hinged door plus a fixed panel. The door can open both inward and outward. Model suitable for situations that require a wide opening on a single side of the product.

Profiles
  • Linen matt 'L70'
  • Polished gloss 'ULU'
  • Lead matt 'L80'
  • Ice matt 'L90'
  • Brushed gold 'GLB'
  • White matt 'L91'
  • Brushed bronze 'AL4'
  • Matt navy blue 'L92'
  • Sage matt 'L73'
  • Brushed nickel 'SNK'
  • Sand matt 'L98'
  • Sky matt 'L65'
  • Mauve matt 'L64'
  • Brushed gunmetal 'GMB'
  • Carbon matt 'L63'
  • Taupe matt 'L99'

Tempered glass panels
  • Patterned glass 'ST'
  • Satin glass 'AS'
  • Mirror 'SY'
  • Grey satin 'GS'
  • Satin band H.100 'RF'
  • Extra-clear glass 'TE'
  • Grey transparent glass 'TG'
  • Transparent glass 'TR'

Photo gallery
Product images available in the Photo Gallery section (various color variants and finishes).

Available documents
  • Product sheet_Samo 81
  • Assembly instructions
  • Spare parts
  • Fixed panel spare parts

Dimensions
Door
B2941 — Expandability: 67-69 cm — Opening: 59.6 cm
B2942 — Expandability: 72-74 cm — Opening: 64.6 cm
B2943 — Expandability: 77-79 cm — Opening: 69.6 cm
B2944 — Expandability: 82-84 cm — Opening: 74.6 cm
B2945 — Expandability: 87-89 cm — Opening: 79.6 cm
B2946 — Expandability: 97-99 cm — Opening: 89.6 cm

Fixed panel
B3000 — Expandability: 67-69 cm
B3001 — Expandability: 69-71 cm
B3002 — Expandability: 72-74 cm
B3003 — Expandability: 74-76 cm
B3004 — Expandability: 77-79 cm
B3005 — Expandability: 79-81 cm
B3006 — Expandability: 82-84 cm
B3007 — Expandability: 84-86 cm
B3008 — Expandability: 87-89 cm
B3009 — Expandability: 89-91 cm
B3010 — Expandability: 97-99 cm
B3011 — Expandability: 99-101 cm
B3012 — Expandability: 107-109 cm
B3013 — Expandability: 109-111 cm
B3014 — Expandability: 117-119 cm
B3015 — Expandability: 119-121 cm

Features / technical specifications
  • Type: Hinged door + fixed panel (corner shower configuration)
  • Door opening: inward and outward
  • Recommended use: situations requiring a wide opening on one side
  • Profiles and finishes: multiple metal finishes and colours (see profiles list)
  • Glass panels: various types (patterned, satin, extra-clear, grey transparent, mirror, etc.)
  • Technical documentation available: product sheet, assembly instructions, spare parts

Catalogs

No catalogs are available for this product.

See all of SAMO‘s catalogs
Go to the SAMO website for more information

Other SAMO products

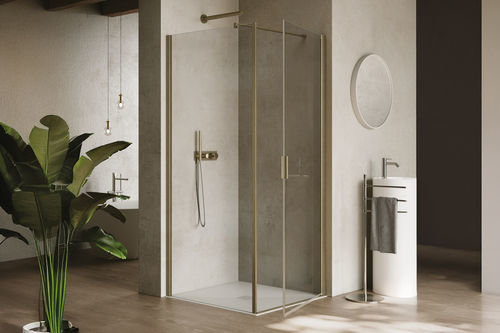

Polaris Super
