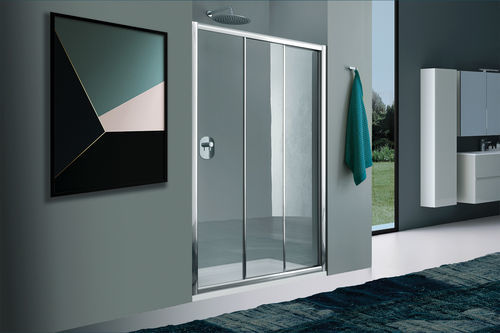

Sliding shower screen AMERICA QUATTRO

fixedtempered glasssatin-finish glass

Overview
Three-panel sliding door with overlapping lateral sliding leaves. Model suitable for most installations and available in a wide range of sizes.

Profiles

• Matte black 'L96'
• Matte white 'L91'
• Polished glossy 'ULU'

Tempered glass panels

• Patterned glass 'ST'
• Frosted glass 'AS'
• Clear glass 'TR'

Photo gallery
Product images with multiple views and finish variants are available in the product image gallery.

Download
Assembly instructions; Spare parts AMERICA QUATTRO; Product sheet_Samo 80.

Measurements (table)
Item | Extendability [cm] | Opening [cm]
B6408 | 68-76 | 32
B6409 | 77-85 | 38
B6410 | 86-94 | 44
B6411 | 95-103 | 50
B6455 | 104-112 | 56
B6456 | 113-121 | 62

Fixed panel - Item | Extendability [cm] | Opening [cm]
B6421 | 63-67 | //
B6422 | 67-71 | //
B6424 | 73-77 | //
B6425 | 77-81 | //
B6427 | 83-87 | //
B6428 | 87-91 | //
B6429 | 97-101 | //

Features / technical specifications

• Type: three-panel sliding door
• Operation: lateral overlapping sliding leaves
• Suitable for most installations
• Available in a wide range of sizes (see Measurements table)
• Available profiles: Matte black 'L96', Matte white 'L91', Polished glossy 'ULU'
• Panels: tempered glass - Patterned 'ST', Frosted 'AS', Clear 'TR'
• Documentation available: Assembly instructions; Spare parts AMERICA QUATTRO; Product sheet_Samo 80
• Article codes and respective extendability/opening: B6408 (68-76 cm / 32 cm), B6409 (77-85 cm / 38 cm), B6410 (86-94 cm / 44 cm), B6411 (95-103 cm / 50 cm), B6455 (104-112 cm / 56 cm), B6456 (113-121 cm / 62 cm)
• Fixed panel — codes and extendability: B6421 (63-67 cm), B6422 (67-71 cm), B6424 (73-77 cm), B6425 (77-81 cm), B6427 (83-87 cm), B6428 (87-91 cm), B6429 (97-101 cm)
