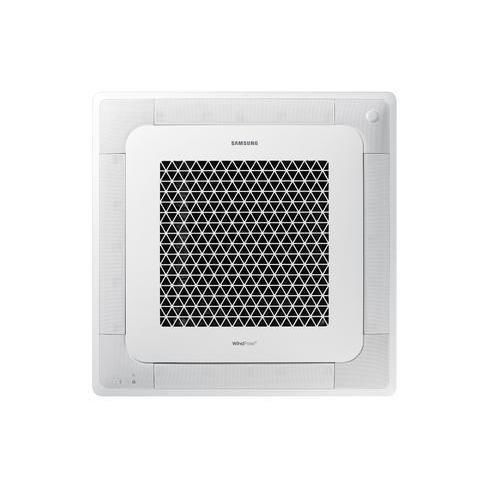

Ceiling-mounted fan coil AG060AN4DKH/EU

recessedcassette

Overview
Introducing the 4‑Way Cassette FCU WindFree™, a ceiling cassette unit designed for concealed installation in commercial and residential interiors. The unit provides gradual, draft‑free conditioning and a low‑profile finish suitable for restaurants, offices, shops and living areas.

Features

• WindFree™ Technology — The WindFree 4‑Way 900 x 900 cassette distributes air through 15,700 micro‑holes in the panel to produce 'Still Air', cooling spaces gradually without cold drafts.
• Optimised blades — Larger 84 mm blades extend the effective cooling range and improve air circulation for more uniform temperature distribution. Blades are detachable and washable for simplified maintenance and consistent airflow quality.
• Self‑Diagnosis — Integrated self‑diagnosis provides error codes and LED indicators to speed up fault identification and reduce service time.

Controls

• Remote control with SmartThings — Remote operation via the SmartThings app enables on/off, mode selection, scheduling and energy monitoring (requires Wi‑Fi kit and compatible SmartThings account/app).
• SolarCell Remote Controller (optional) — Optional SolarCell remote charges via an integrated solar panel (no disposable batteries), offers USB‑C fast charging, a large OLED display and improved ergonomics.

Available capacities & power
Available cooling capacities: 6.0 kW, 7.2 kW, 9.0 kW, 10.0 kW. Power supply: Single phase (220–240 V, 50/60 Hz).

Disclaimers

• 'Still Air' is defined as air movement below 0.15 m/s (no cold drafts).
• Comparative performance references relate to previous 4‑Way Cassette models.
• SmartThings control requires a Wi‑Fi kit and compatible mobile OS versions.

Technical specifications

• Type: 4 WAY CASSETTE S
• Model family: WindFree™ 4‑Way Cassette FCU
• Indoor unit (example): AG060AN4DKH/EU
• Cooling (nominal): 6.0 kW (available: 6.0 / 7.2 / 9.0 / 10.0 kW)
• Heating (at +7 °C): 7.3 kW (other variants: 7.3 / 8.5 / 10 / 10.7 kW)
• Dimensions (W x H x D): 947 x 281–365 x 947 mm (other variant: 840 x 204–246 x 840 mm)
• Net weight (indoor): 21–25 kg (other variants: 15.5–18 kg)
• Power supply: 1, 220~240 V, 50/60 Hz
• Power input: Cooling 0.050 kW; Heating 0.050 kW
• Current input: Cooling 0.37 A; Heating 0.37 A
• Fan type: Turbo Fan; Motor output: 65.0 W
• Air flow rate (Cooling): 18.9 / 16.5 / 13.6 CMM
• Airflow directional capability: 360°
• Blade angle: ranges approximately 34–87° depending on variant
• Colors: Black & White (some variants: White)
• WindFree: Yes
• Motion sensor: Optional
• SmartThings compatibility: Optional (requires Wi‑Fi kit)
• Filter PM1.0: Optional
• Water side heat exchanger — Flow rate (Cooling/Heating): 17.5 LPM / 21.1 LPM
• Water side heat exchanger — Pressure drop: Cooling 27.0 kPa; Heating 37.3 kPa
• Piping connections: Liquid pipe Ø 20A mm (PF 3/4"); Gas pipe Ø 20A mm (PF 3/4"); Drain pipe VP25 (OD 32, ID 25) mm
• Field wiring: Power wire 1.5–2.5 mm²; Transmission cable 0.75–1.50 mm²
• Sound pressure level (High/Mid/Low): 37 / 33 / 30 dB(A)
• Sound power level: 56.0 dB(A)
