Ceiling-mounted fan coil AG026TN1DKH/EU

cassette

Overview

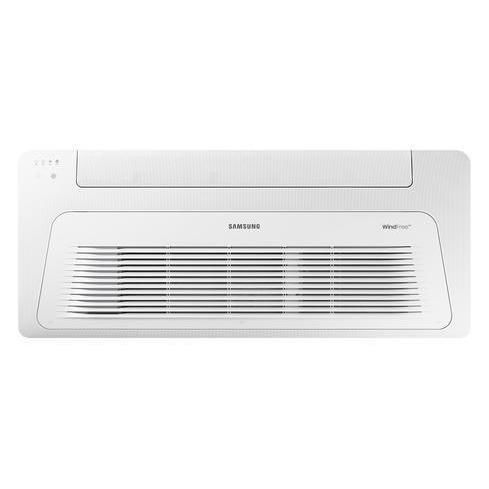

At a height of only 135 mm the WindFree™ 1‑Way Cassette is a compact, lightweight fan coil unit suitable for installation in shallow ceiling voids. Its slim profile facilitates installation and maintenance in confined spaces.

Product identifiers
Model: AG026TN1DKH/EU
Capacity (displayed on page): 2.6 kW
Available capacities: 2.6 kW, 3.2 kW, 4.2 kW
Power: 1 Phase

Key features

• WindFree™ Technology: air is distributed through 13,000 micro‑holes in the panel to produce a gentle, draft‑free airflow that cools by creating “Still Air”.
• Smart Comfort Operation: integrated humidity and temperature sensors continuously monitor conditions and switch modes to maintain set comfort parameters.
• Air Purification Panel (optional): three‑stage filtration (Pre‑Filter, Deodorization Filter, PM1.0 Filter) to trap larger dust, reduce odours and capture ultrafine particles; PM1.0 filter reported to inactivate certain bacteria (per referenced Intertek report).
• Smart Control: compatible with Samsung SmartThings (requires WiFi Kit MIM‑H04EN, Wi‑Fi connection and SmartThings account) for remote control, scheduling and energy monitoring.
• SolarCell Remote Controller (optional): batteryless solar charging with USB‑C fast charge option and OLED display; fully charged internal backup can last up to two years under typical conditions.
• Drain pump: built‑in drain pump (max. lifting height/displacement: 1200 / 400).

Air Purification details

• Pre‑Filter: captures larger dust particles to protect the unit.
• Deodorization Filter: reduces certain unpleasant odours (available for WindFree 1‑Way Cassette models).
• PM1.0 Filter: captures ultrafine dust (PM1.0) and inactivates certain types of bacteria collected on the filter (per referenced Intertek report).

WindFree™ / Comfort functions

• No cold drafts: WindFree Cooling disperses air through micro‑holes to create still air with minimal drafts.
• Humidity sensing: humidity level accessible during WindFree™ operation and Dry Mode via the SmartThings app.
• Optional motion sensor detector and optional SmartThings support depending on configuration.

Representative specification table (comparison rows shown on page)
Capacity Cold (kW) Cooling (Nominal): 6.0 - 7.2 - 9.0 - 10 | 6.0 - 7.2 - 9 - 10 | 2.6 - 3.0 - 4.2
Capacity Warm (kW) Heating at +7°C: 7.3 - 8.5 - 10 - 10.7 | 7.3 - 8.5 - 10 ; 10.7 | 2.9 - 3.4 - 5.0
Dimensions Indoor Unit (W x H x D): 947 x 281 - 365 x 947 | 840 x 204 - 246 x 840 | 970 - 1200 x 235 - 138 x 410 - 450
Weight (Kg) Indoor Unit Range: 21 - 25 | 15.5 - 18 | 10.1 - 14

Technical specifications

• Type: JSF1
• Model Name (Indoor Unit): AG026TN1DKH/EU
• Power Supply (Indoor Unit) [Φ, #, V, Hz]: 1,2,220~240,50/60
• System Mode: HEAT PUMP
• Capacity (Cooling [kW]): 2.60 kW
• Capacity (Heating [kW]): 2.90 kW
• Power Input (Cooling 1): 0.027 kW
• Power Input (Heating 2): 0.027 kW
• Current Input (Cooling): 0.14 A
• Current Input (Heating): 0.14 A
• Fan Type: Cross Flow Fan
• Motor (Output) [W]: 27.0 W
• Air Flow Rate (Cooling) [CMM]: 6.8 / 5.8 / 4.9 CMM
• Water Side Heat Exchanger - Water Flow Rate (Cooling) [LPM]: 7.5 LPM
• Water Side Heat Exchanger - Water Flow Rate (Heating) [LPM]: 8.4 LPM
• Water Side Heat Exchanger - Pressure Drop (Cooling): 23.0 kPa
• Water Side Heat Exchanger - Pressure Drop (Heating): 28.0 kPa
• Piping Connections - Liquid Pipe (Ø, mm): 20A mm
• Piping Connections - Liquid Pipe (Ø, inch): PF 3/4
• Piping Connections - Gas Pipe (Ø, mm): 20A mm
• Piping Connections - Gas Pipe (Ø, inch): PF 3/4
• Piping Connections - Drain Pipe (Ø, mm): VP20 (OD26, ID20) mm
• Field Wiring - Power Source Wire: 1.5 ~ 2.5
• Field Wiring - Transmission Cable: 0.75 ~ 1.50
• Sound Pressure Level (High / Mid / Low) [dB(A)]: 33 / 31 / 29 dBA
• Sound Power Level: 50 dBA
• External Dimension (Indoor Unit) - Net Weight (kg): 10.1 kg
• External Dimension (Indoor Unit) - Net Dimensions (WxHxD) (mm): 970 * 135 * 410 mm
• Panel - Model Name: PC1NWSMAN (Normal) / PC1NWFMBN (WindFree)
• Panel - Net Weight (kg): 5.5 / 4.3 kg
• Panel - Shipping Weight (kg): 7.2 / 6.6 kg
• Panel - Net Dimensions (WxHxD) (mm): 1198 * 25 * 500 / 1198 * 35 * 500 mm
• Panel - Shipping Dimensions (WxHxD) (mm): 1262 * 122 * 566 / 1262 * 122 * 566 mm
• Additional Accessories - Drain Pump: Built In
• Additional Accessories - Drain Pump Max. Lifting Height/Displacement: 1200 / 400
• Smart - WiFi Kit: N/A
• App Connectivity - SmartThings App Support: N/A
