Interior door HARMONEE

glassswingcontemporary

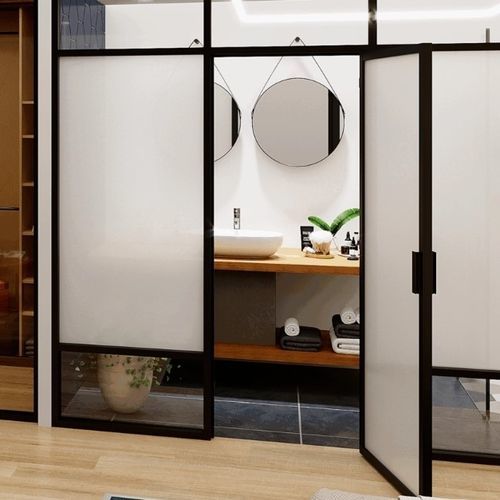

The HARMONEE swing door system is a straightforward, comprehensive solution for designing hinged doors that integrate into a variety of interior configurations. It offers a minimalist composition with limited machining, customization options and compatibility with the Symphonee interior glass partition range.

Key features

• Designed for 6–8 mm glazing or decorative infill panels.
• Machined profile 66 for easy integration of locks and handles.
• Compatibility with the Symphonee interior glass partition range for mixed installations.
• Minimal machining required to preserve a refined, minimalist appearance.

Customization

• Various handle and profile options available to suit design requirements.
• Opening door profile 40: handle profile for 6–8 mm infill.
• Opening door profile 66: handle profile for 6–8 mm infill.
• Machined 66 swing door profile: facilitates integration of locks and handles.
• Profile finish options available via the SEED colour collection.

Available configurations / door types

• Single door without frame.
• Door with cross rails.
• Door with bottom panel.
• Door with frame.
• Door with frame and transom.
• Three-panel (third) swinging door configuration.

Dimensions and fittings

• Width: 630 mm to 930 mm.
• Height: up to 2200 mm.
• Hinge arrangements: 3 hinges for heights below 2040 mm; 4 hinges for heights from 2040 mm to 2200 mm.

Technical characteristics

• Filling: 6–8 mm glazing or decorative panel.
• Machined profile 66 for easy integration of locks or handles.
• Compatibility: integrates with the Symphonee interior glass partition range.
• Available handle/profile options: opening door profiles 40 and 66; machined 66 swing door profile for 6–8 mm infill.
• Finish options: SEED colour collection.
• Standard dimensions: width 630–930 mm; height up to 2200 mm.
• Hinge count: 3 or 4 depending on height.
• Ready-to-manufacture kit options available (e.g. KITPORTE20LBLG, KITPORTE20LNOG, KITPORTE30LBLG, KITPORTE30LNOG) for integration with lacquered frames or V70 integration.
