Stainless steel sliding system HARMONEE

aluminumglasswooden

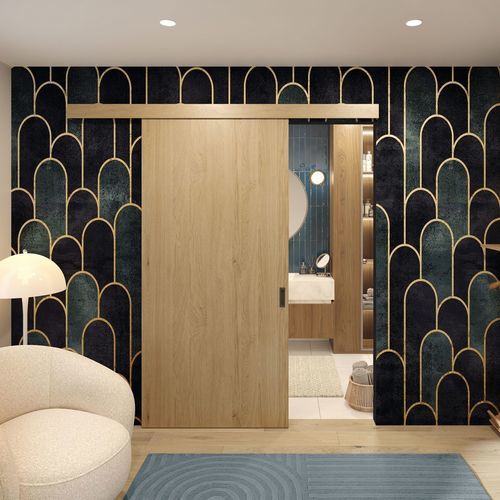

Suspended sliding door HARMONEE is designed to optimise interior space division with a concealed upper rail and a patented damping/soft-closing mechanism for smooth, lightweight operation.

Overview

• System for wall-mounted (surface) or ceiling-mounted installation with concealed mechanism for clean aesthetics.
• Accepts wooden doors (30–40 mm) or glazed/decorative infills (6–8 mm or 10–12 mm).
• Suitable for multiple-door configurations thanks to dedicated guide system.

Technical specifications (detailed)

• Filling: glazing 6–8 mm or 10–12 mm, or decorative panel; wooden door 30–40 mm.
• Installation: surface-mounted (wall) or ceiling-mounted; top track adapted via bracket system.
• Weight capacity: up to 70 kg per door.
• Guide: compatible with multi-door arrangements.

Customisation

• Available handles:
• P810: profile for 6–8 mm or 10–12 mm infill
• P1000: profile for 6–8 mm or 10–12 mm infill
• P7000*: profile for 6–8 mm or 10–12 mm infill — option to integrate a recessed handle into the P7000 profile
• Profile finishes:
• White 9010
• Anodised silver
• Brushed stainless steel
• SEED colour collection

Available accessories

• Trolley 70 kg
• Damping brake
• Door stop brake
• Accessory and profile kits as specified in the product documentation

Dimensions

• Width: 500 mm to 1100 mm
• Height: up to 2600 mm

Documentation

• Product flyer and technical installation sheet available for download (PDF)
