Glass sliding system HARMONEE

doorwall-mountedhome

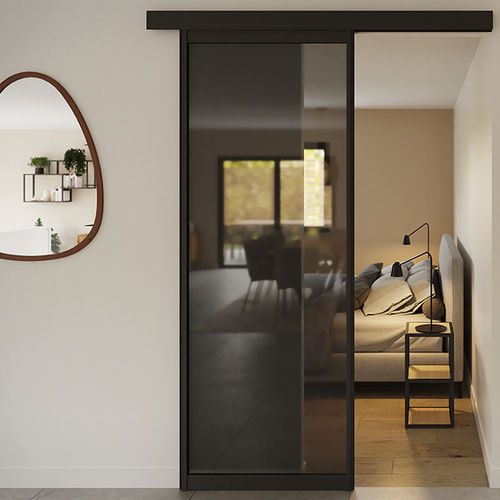

Suspended sliding doors provide an efficient solution to delineate spaces thanks to a wall-mounted or ceiling-mounted installation system and an amortized mechanism offering smooth opening and closing. The system is lightweight, easy to install and designed for glass or decorative panel infills.

Key features

• Installation: surface (wall) or ceiling-mounted high track with bracket system.
• Weight capacity per trolley: 40 kg (patented trolley).
• Damping: double damping brake for both opening and closing; optional spring brake for simplified closing.
• Compatible infill: 6–8 mm or 10–12 mm glazing or decorative panels.
• Available handles: P810 and P820 (each compatible with 6–8 mm or 10–12 mm infill).
• Profile finishes: SEED colour collection (custom finishes available).
• Accessories: dedicated profiles and accessory kits supplied for the 40 kg system.

Customization / options

• Handle profile selection (P810, P820) according to infill thickness.
• Profile finish selection from the SEED colour collection.
• Accessory sets and dedicated profiles tailored to the 40 kg system and application requirements.

Technical specifications

• Range / product family: HARMONEE (suspended sliding door).
• Maximum trolley capacity: 40 kg.
• Filling compatibility: 6–8 mm or 10–12 mm glazing or decorative panels.
• Damping: double damping brake for opening and closing; optional spring brake.
• Mounting: surface (wall) or ceiling mount using bracket system (adaptable high track).
• Handles: P810 and P820 (compatible with 6–8 mm or 10–12 mm infill).
• Dimensions: width 500 mm to 1100 mm; height up to 2600 mm.
• Finishes: SEED colour collection; custom profile finishes available.
