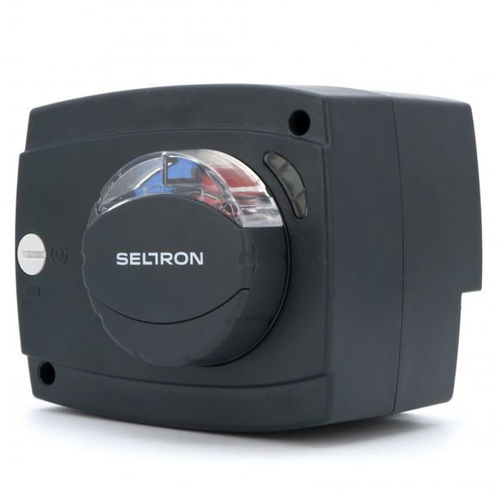

AVC actuators are intended for the control of rotary mixing and ball valves.
Used with controlling the ventilation systems.
Various other central heating devices.
A robust construction.
Four possible installation positions.
Motor protection when the mixing valve is blocked.
Operation signalisation with LED technology.
It can be mounted on rotary mixing or ball valves.
Possibility of a proportional controlling of mixing valves.
Integrated micro switch to switch-off the circulation pump when the mixing or switching valve is in extreme position.
Connection voltage - 230 V~ or 24 V~
Own consumption - <5 W
Auxiliary pump OFF switch - 230 V~, 3 A
Degree of protection - IP42
Safety class - II for the voltage of 230 V~
III for the voltage of 24 V~
Housing material - PC – dark grey
Standard cable length - 2 m
Operating temperature - 0÷50 °C
Storage temperature - -20÷75 °C
Product weight - 390÷860 g
No. of pieces in the packaging unit - 24 pcs
