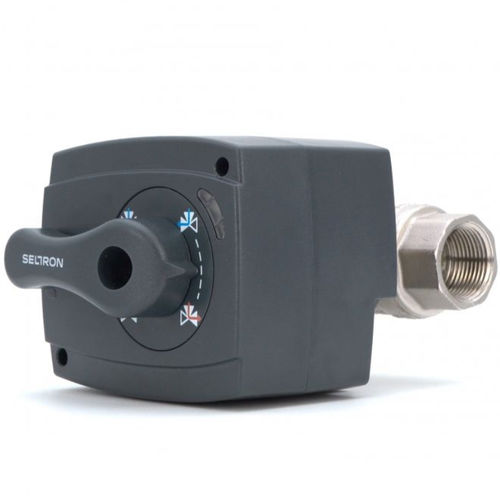

AVC and 2 W ball valve sets are designed for zonal heating or switching between two heat sources.
ON/OFF zonal heating system control.
As a shut-off element for heating systems.
As a shut-off element for sanitary water systems.
As a shut-off element for cooling systems.
As a shut-off element in processing industry and agriculture.
Perfect seal.
Minimum resistance or flow reduction.
Suitable for use in household and commercial systems.
Suitable for use in the heating system, as well as in sanitary water systems.
Extremely simple and quick installation.
Indicator of the direction of rotation.
Indicator of the direction of rotation of the mixing valve.
Integrated permanent manual operation clutch.
The actuator is not damaged in case of valve blockage.
Connection voltage - 230 V ~ or 24 V ~
Own consumption - < 5 W
Standby consumption - < 0.25 W
Auxiliary pump OFF switch - 250 V~, 3 A
Degree of protection - IP 42
Safety class - II for the voltage of 230 V~
III for the voltage of 24 V~
Housing material - PC – dark grey
Standard cable length - 2 m
Operating temperature - 0÷50 °C
Storage temperature - -20÷75 °C
Product weight - 390÷860 g
No. of pieces in the packaging unit - 12 pcs
