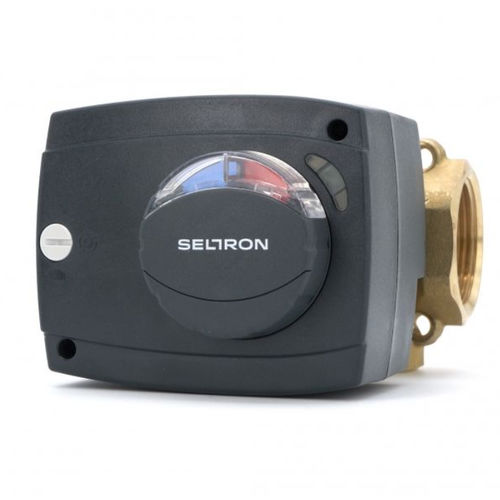

Surface mounted heating controller AVC + 4 W

for heating and coolingfor ventilation systemfor valves

AVC and 4 W mixer sets are used for regulating heating or cooling and control of ventilation systems. For controlling various heating systems for heating and cooling. For controlling ventilation systems. Minimum resistance or flow reduction. Suitable for use in residential and commercial systems. Suitable for use in the heating system as well as in the systems for hot water. Very easy and quick installation. Indicator of the rotation direction. Display of the valve position. Fitted permanent coupling for manual operation. In the case of a blocked valve, the motor drive is not damaged. Connection voltage - 230 V~ or 24 V~ Own consumption - < 5 W Auxiliary pump OFF switch - 250 V~, 3 A Degree of protection - IP 42 Safety class - II for the voltage of 230 V~ III for the voltage of 24 V~ Housing material - EN 60730-1 EN 60730-2-14 Housing material - PC – dark grey Standard cable length - 2 m Operating temperature - 0÷50 °C Storage temperature - -20÷75 °C Product weight - 390÷860 g No. of pieces in the packaging unit - 12 pcs Maximum operating pressure - 10 bar Maximum operating temperature - 110 °C Running angle - 90 ° Body - Brass Stem - Brass Cover - Brass Stem seat - Brass
