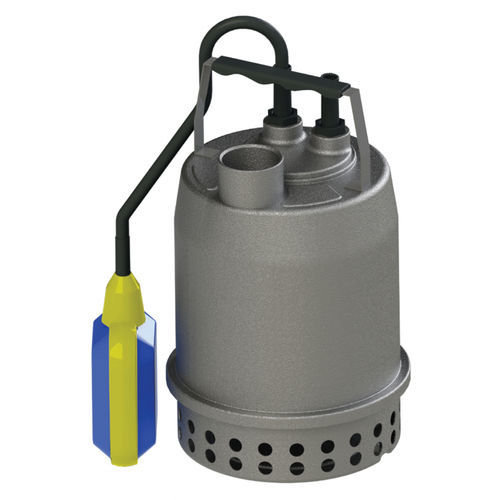

Water pump Sanisub Steel 50 A

for pumping stationswith electric motorstainless steel

SANISUB STEEL is a stainless steel pump Lifting height of 7,5M, flow rate of 9m3/h Automatic float release Complete kit available: basket, pump, hose SANISUB STEEL is a stainless steel pump for pumping water from cellars, garages or rainwater manholes. SANISUB STEEL with its flow rate of 9m3 and its lifting height of more than 7m makes it possible to intervene efficiently. Available in kit form with a basket that protects the pump from floating foreign bodies, a quick coupling associated with the 15M discharge hose to cope with all configurations and its retaining cannula prevents the possible pinching of the hose when the pump is started. Finally, its 10m power supply cable is standard equipped with an electric plug. Materials Pump body - EN-GJL-200 Waterproofing - Carbon/Ceramic Motor body - Stainless steel Wheel - PA 6 GF Electrical characteristics Voltage - 230 V Frequency - 50-60 Hz Power consumption P1 - 450 W Power output P2 - 203 W RPM - 2800 rpm Electrical class - I Electrical class of the motor - F Immersion depth - 5 m Power cable: Length - 10 m Hydraulics HMT max. - 7.5 m Max. flow rate - 9 m³/h Discharge diameter G - 1"1/4 inch ON/OFF level - 200/50 mm Particle size - 10 mm Max. permissible temperature of the pumped liquid - 70 °C (5 mins) Wheel type - Multi-channel wheel Switching type - Float
