Water pump Sanisub S-ZPK

for pumping stationswith electric motorstainless steel

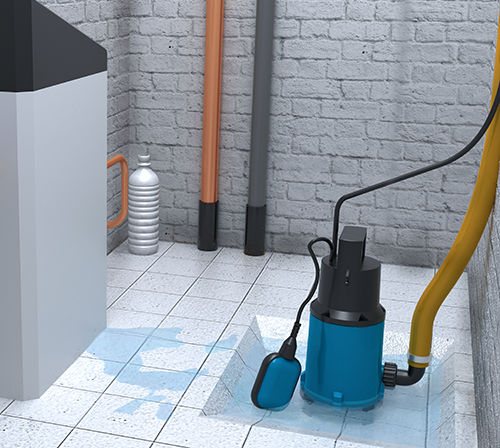

SANISUB S-ZPK, 2 models for all your needs : Pump for aggressive or saline water (salt content max. 15%) Lifting height of 7.5M or 10M 2 models: 30A & 40A Automatic float release SANISUB S-ZPK is a cellar vacuum pump for pumping clear water from cellars, garages and rainwater manholes. Available in two power ratings of 300 and 850 W, they can be raised to 7.5 or 10 M high with automatic release thanks to the standard float. The S-ZPK versions have a silicon carbide mechanical seal and a 316L STAINLESS STEEL motor housing to drain grey water such as brine water from softeners or salt water (max 15%). Materials Pump body - PP GF - PP GF Waterproofing - Viton - Viton Motor body - Stainless steel - Stainless steel Wheel - PA 6 GF - PA 6 GF Electrical characteristics Voltage - 230 V - 230 V Frequency - 50-60 Hz - 50-60 Hz Power consumption P1 - 300 W - 850 W Power output P2 - 130 W - 430 W RPM - 2800 rpm - 2800 rpm Electrical class - I - I Immersion depth - 5 m - 5 m Power cable: Length - 10 m - 10 m Hydraulics HMT max. - 7.5 m - 10 m Particle size - 10 mm - 30 mm Max. permissible temperature of the pumped liquid - 90 °C (5 mins) - 90 °C (5 mins)
