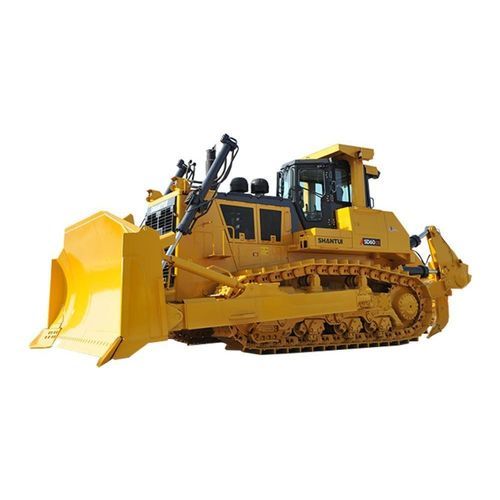

Crawler bulldozer SD60-C5

Product
Crawler bulldozer Shantui SD60-C5 designed for heavy earthmoving and mining operations. Equipped with a Cummins engine delivering 450 kW and a Semi-U blade with 18.9 m³ capacity.

Key features

• Powertrain & drivetrain: Dedicated Cummins engine and electronically controlled transmission with preset gear selection for efficient power delivery and controllable operation.
• Maintenance & operator comfort: Centralized filter layout for simplified maintenance. Spacious, well-sealed cab with wide visibility and an intelligent diagnostic system for real-time monitoring.
• Worksite adaptability: K-type suspension (four wheels and one track), reinforced heavy-duty tracks, high-strength Semi-U blade and single-tooth ripper tailored for severe mining conditions.

Technical parameters

• Model: SD60-C5
• Overall weight (kg): 70630
• Engine brand: Cummins
• Rated power / rated speed (kW / rpm): 450 / 1800
• Machine external dimensions (mm): 10390 × 4690 × 4370
• Track center distance (mm): 2500
• Track shoe width (mm): 610 (optional 710 / 810)
• Ground contact length (mm): 3840
• Fuel tank capacity (L): 1150
• Blade type: Semi-U blade
• Blade capacity (m³): 18.9
• Emissions: EU Stage IIIA

Application cases

• Shantui SD60-C5 working on a mining site in Uzbekistan.

Specifications

• Overall weight (kg): 70630
• Engine brand: Cummins
• Rated power / rated speed (kW / rpm): 450 / 1800
• Machine external dimensions (mm): 10390 × 4690 × 4370
• Track center distance (mm): 2500
• Track shoe width (mm): 610 (optional 710 / 810)
• Ground contact length (mm): 3840
• Fuel tank capacity (L): 1150
• Blade type: Semi-U blade
• Blade capacity (m³): 18.9
• Emissions: EU Stage IIIA
