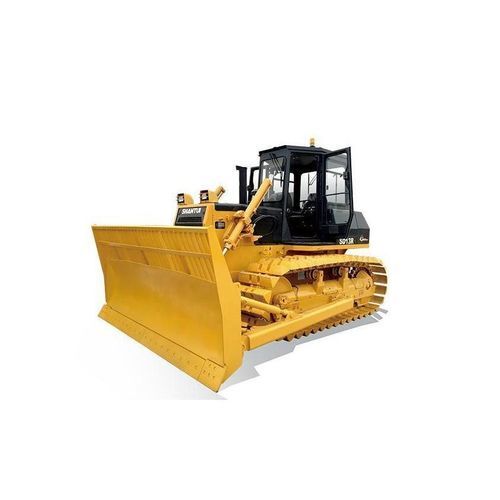

Tracked bulldozer SD13R

Product
Small bulldozer SD13R designed for medium‑duty earthmoving, sanitation and site‑clearance tasks. Compact dimensions and a dedicated powertrain suit operations in confined sites.

Key features

• Drive and tractionShantui’s self‑developed drive system and dedicated engine (DONGFENG CUMMINS 6CTA8.3-C145) provide reliable traction and durability. Four wheels and one track configuration improves stability.
• Maintenance and operator comfortService items such as fuel and air filters are positioned on the same side for simplified maintenance. The hexahedral cab offers an ergonomic layout, spacious interior and wide field of view.
• AdaptabilityLarge chassis ground clearance and an anti‑entanglement device improve passability. Supplied with a sanitation blade; ripper available as an option. Well‑sealed cab suitable for sanitation conditions.

Technical specifications

• Model: SD13R
• Type: Small bulldozer
• Overall weight: 15200 kg
• Engine: DONGFENG CUMMINS 6CTA8.3-C145
• Rated power / rated speed: 108 kW / 1900 rpm
• Machine external dimensions (L×W×H): 4492×2580×3000 mm
• Track center distance: 1880 mm
• Track shoe width: 700 mm
• Ground contact length: 2365 mm
• Fuel tank capacity: 280 L
• Blade type: R blade
• Blade capacity: 6.9 m³
• Emissions standard: China-II

Applications

• Suitable for sanitation, site clearance, mining support and exploration works (examples: mining sites, desert oil exploration, open‑pit mining).
