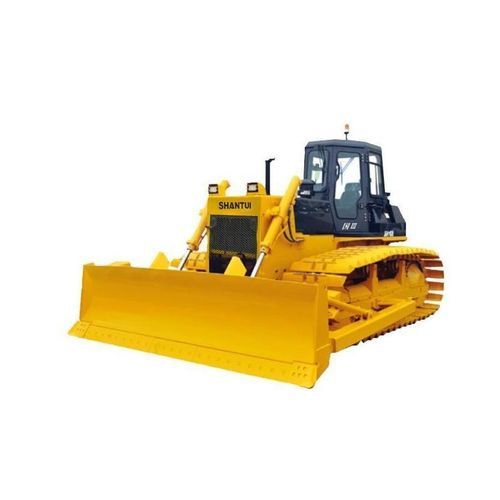

Crawler bulldozer SD16L

Characteristic

• Configuration selling point: Shantui’s self-manufactured drive system is matched to the engine power curve to deliver strong traction and improved transmission efficiency. The manufacturer’s four-wheel one-track design is engineered for durability and reliable operation.
• Ease of maintenance and operator comfort: An openable side guard provides wide access and the logically arranged filter elements simplify routine maintenance. The hexagonal cab is ergonomically designed to offer a roomy interior and an expansive field of view.
• Adaptability to diverse working conditions: Fitted with a straight tilt blade for superior cutting force. The broad track contact area improves performance in soft ground such as wetlands and marshes, reducing the risk of bogging and ensuring excellent passability.

Parameter
Parameter | SD16L
Overall weight(kg) | 18460
Engine brand | WEICHAI WD10G178E25
Rated power/rated speed(kW/rpm) | 131/1850
Machine external dimensions(mm) | 5262*4150*3074
Track center distance(mm) | 2300
Track shoe width(mm) | 1100/950
Ground contact length(mm) | 2935
Fuel tank capacity(L) | 315
Blade type | Straight tilting blade
Blade capacity(m³) | 3
Emissions (Indicated as per international standards) | EU Stage II

Specifications / technical data

• Model: SD16L
• Overall weight: 18,460 kg
• Engine: WEICHAI WD10G178E25
• Rated power / speed: 131 kW / 1850 rpm
• Dimensions (L×W×H): 5262 × 4150 × 3074 mm
• Track center distance: 2300 mm
• Track shoe width: 1100 / 950 mm
• Ground contact length: 2935 mm
• Fuel tank capacity: 315 L
• Blade type: Straight tilting blade
• Blade capacity: 3 m³
• Emissions standard: EU Stage II
