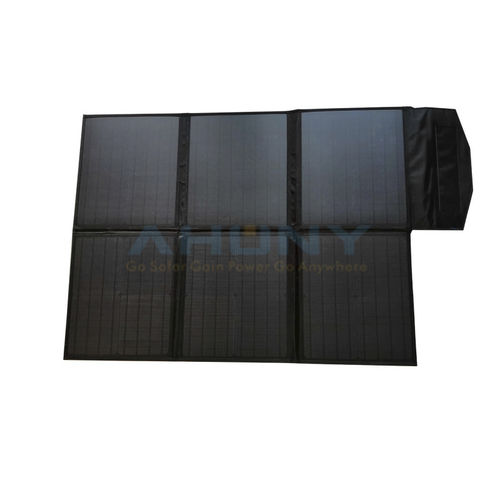

PV solar kit EMOBI FM6X20W
portable

PV solar kit - EMOBI FM6X20W - SHENZHEN AHONY POWER CO.,LTD - portable
PV solar kit - EMOBI FM6X20W - SHENZHEN AHONY POWER CO.,LTD - portable
Add to favorites
Compare this product

Characteristics

Type
PV
Other characteristics
portable

Description

eMobi FM series uses mono PERC solar cells High efficiency solar cell 21.3% ultralight material fabric waterproof small size and more foldable For outdoor,emergency medical care,camping,RV etc Product Name - 12V folding solar kits Maximum Power[Wp] - 120 Solar Cell - Mono PERC A Grade Solar Cell Cell Efficiency - 21.30% Folded Size[mm] - 385*330*16 Open Size[mm] - 2315*385*4 Max Power Voltage Vmp[V] - 20.16 Max Power Current Imp[A] - 5.95 Open Circuit Voltage Voc[V] - 23.79 Short Circuit Current Isc[A] - 6.43 Net.Weight[kg] - 3.5 NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/ - -0.4 Temperature Coefficient Voc[[mV/ - -2mV Temperature Coefficient Isc[mA/ - 0.037 Maximum System Voltage[V] - 100 V Certification - CE ROHS
