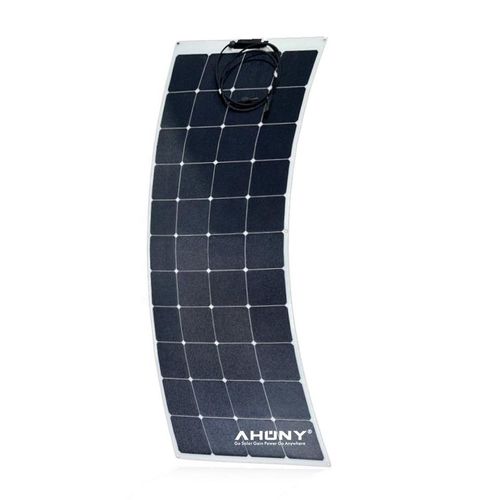

Product Name - custom panel solar flexible 160w thin light film bendable back contact sunpower cell for camping rv marine outdoor application
Maximum Power[Wp] - 160
Solar Cell - Back Contact Cell 12v gunes paneli
Cell Array[Pcs] - 4*11
Cell Efficiency - 24.4%
Size[mm] - 540x1460x3
Max Power Voltage Vmp[V] - 26.9
Max Power Current Imp[A] - 5.95
Open Circuit Voltage Voc[V] - 31.7
Short Circuit Current Isc[A] - 6.31
Net.Weight[kg] - 2.8
NOCT[ - 45±2
Operating Temperature[ - -40/+85
Temperature Coefficient Pmax[%/ - -0.3
Temperature Coefficient Voc[[%/ - -1.74mV
Temperature Coefficient Isc[[%/ - 0.05
Maximum System Voltage[V] - 100 V
Maximum Reverse Current[V] - 12A
Certification - CE ROHS
Surface/Backsheet - rough shiny ETFE/white or black backsheet
Cables and Connectors - Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions - STC: 1000W/m², AM 1.5g and cell temp 25°C
