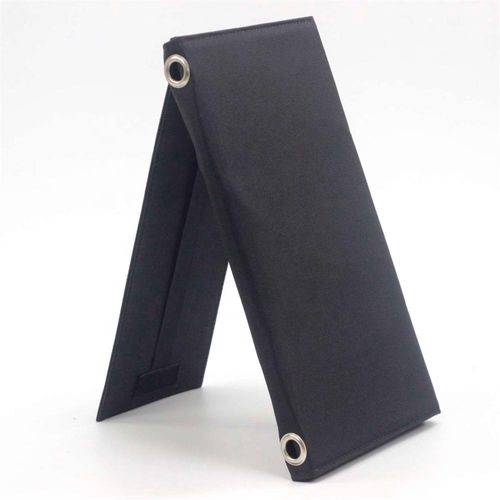

Model No. - mini solar panel usb Potovoltaic panel foldable solar blanket
Product Name -
Integrated USB Solar Charger
Maximum Power[Wp] - 12
Solar Cell - Chinese mono cell
Cell Efficiency - 20.4%
Folded Size[mm] - 200*290*20
Open Size[mm] - 397*290*12
Max Power Voltage Vmp[V] - 5.00
Max Power Current Imp[A] - 2.40
Open Circuit Voltage Voc[V] - 5.90
Short Circuit Current Isc[A] - 2.50
Net.Weight[kg] - 0.35
Output[V] - 5
USB and Current[A] -
dual USB,2*2.5A,Max 3.5A
surface/backsheet - ETFE/PCB
Solar panel waterproof - IP 65
jbox waterproof - IP30
standard test conditions -
STC: 1000W/m², AM 1.5 and cell temp 25°C
Eyelet or laser cutting holes
laser cutting holes.6pcs
