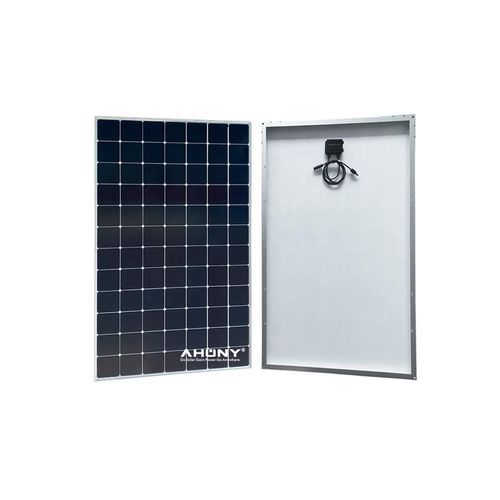

Monocrystalline PV solar panel eRigid M305w

flexible

Product Name - Gen III high efficiency sunpower solar module 305w for rv roof Maximum Power[Wp] - 305 Solar Cell - 125*125 Cell Array[Pcs] - 7*12 Cell Efficiency - 24.4% Size[mm] - 915*1575*40 Size[inch] - 36*62 Max Power Voltage Vmp[V] - 51.4 Max Power Current Imp[A] - 5.94 Open Circuit Voltage Voc[V] - 60.66 Short Circuit Current Isc[A] - 6.29 Net.Weight[kg] - 13 Power tolerance[ - ±3% NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/K] - -0.3 Temperature Coefficient Voc[[%/K] - -1.74mV Temperature Coefficient Isc[[%/K] - 0.05 Maximum System Voltage[V] - 1000 V Maximum Reverse Current[V] - 20A Certification - CE ROHS Surface/Backsheet - Glass/silver frame/white backsheet Cables and Connectors - Jbox IP65,2bypass diode,0.9m*4mm2 cable and 1 pair of MC4 connector Standard Test Conditions - STC: 1000W/m², AM 1.5 and cell temp 25°C Package - 1pcs/carton box and plywood pallet
