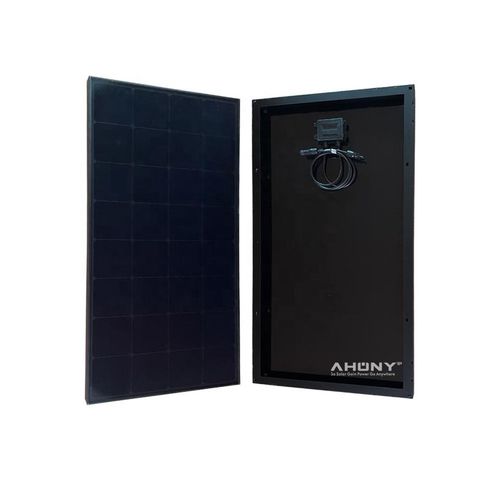

Monocrystalline PV solar panel eRigid M110w SP

flexible

Product Name - 12v 110W solar panel back contact cell black or silver frame for off grid application with good performance under low light Maximum Power[Wp] - 110 Solar Cell - SunPower Maxeon Gen III Back Contact Cell Cell Array[Pcs] - 4*8 Cell Efficiency - 23.7% Size[mm] - 540*1055*30 Size[inch] - 21.3*41.7 Max Power Voltage Vmp[V] - 19.2 Max Power Current Imp[A] - 5.93 Open Circuit Voltage Voc[V] - 21.90 Short Circuit Current Isc[A] - 6.40 Net.Weight[kg] - 6.25 Power tolerance[ - ±3% NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/K] - -0.3 Temperature Coefficient Voc[[%/K] - -1.74mV Temperature Coefficient Isc[[%/K] - 0.05 Maximum System Voltage[V] - 1000 V Maximum Reverse Current[V] - 20A Certification - CE ROHS Surface/Backsheet - Glass/silver frame/white PETbacksheet Cables and Connectors - Jbox IP65,2bypass diode,0.9m*4mm2 cable and 1 pair of MC4 connector Standard Test Conditions - STC: 1000W/m², AM 1.5 and cell temp 25°C Package - 1pcs/carton box and plywood pallet
