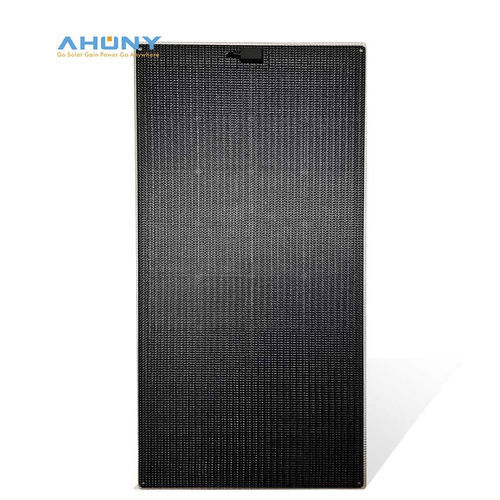

Monocrystalline PV solar panel eRigid S135w

flexible

Product Name - high quality flexible solar panel electric car 135W solar panel to use for home solar system electric motor cycle golf car Maximum Power[Wp] - 135 Solar Cell - SunPower Maxeon Gen III Back Contact Cell Cell Array[Pcs] - 5*8 Cell Efficiency - 22.60% Size[mm] - 680*1060*35 Size[inch] - 26.8*41.7 Max Power Voltage Vmp[V] - 24.00 Max Power Current Imp[A] - 5.63 Open Circuit Voltage Voc[V] - 28.32 Short Circuit Current Isc[A] - 6.08 Net.Weight[kg] - 7.2 Power tolerance[ - ±3% NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/K] - -0.3 Temperature Coefficient Voc[[%/K] - -1.74mV Temperature Coefficient Isc[[%/K] - 0.05 Maximum System Voltage[V] - 1000 V Maximum Reverse Current[V] - 20A Certification - CE ROHS ISO 9001 Surface/Backsheet - Glass/silver frame/white backsheet Cables and Connectors - Jbox IP65,2bypass diode,0.9m*4mm2 cable and 1 pair of MC4 connector Standard Test Conditions - STC: 1000W/m², AM 1.5 and cell temp 25°C
