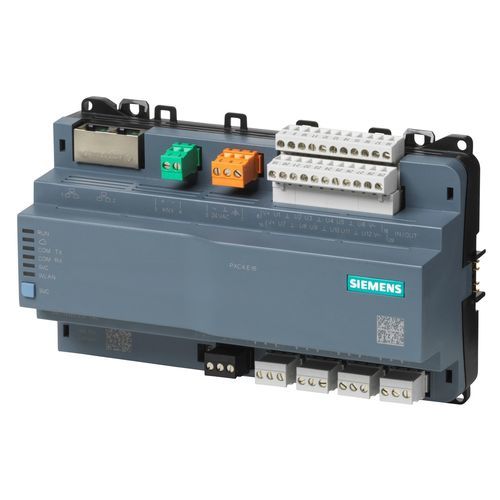

Interior building automation system PXC4.E16-2

protectionfor air conditioning systemsfor building automation systems

Freely programmable automation station for HVAC and building service plants. System functions (alarming, scheduling, trending, access protection) Freely programmable (close resemblance to CEN standard 11312). All function blocks, available in libraries, can be graphically connected. Total 16 onboard IO’s: 12 universal input/outputs and 4 relay outputs Allows for the direct connection of I/O modules TXM. Up to 4 TXM modules (depending on the type) can be powered directly. Maximal number of inputs and outputs (onboard and TXM) is 40. Integration of up to 40 Modbus data points Direct connection of field devices; the automation station provides power supply for inputs and outputs as well as for active sensors. Battery free: Energy reserve (Supercap) to support real-time clock (7 days) Engineering and commissioning with the user-friendly tool ABT Site using graphical function charts Generic object viewer for device local datapoints via an embedded web interface BTL tested BACnet communication on IP (BACnet/IP and BACnet/SC) or BACnet MS/TP, in compliance with the BACnet standard including B-BC profile (Rev. 1.15) BACnet secure communication WLAN interface for engineering and commissioning Operating voltage AC 24 V Communication BACnet/IP, BACnet/SC Relay outputs, number 4 Universal inputs/outputs, number 12 Current inputs 4-20 mA, number 4 Mounting DIN rail , Wall mounting Degree of protection IP20 Dimensions (W x H x D) 198 x 124 x 70.5 mm
