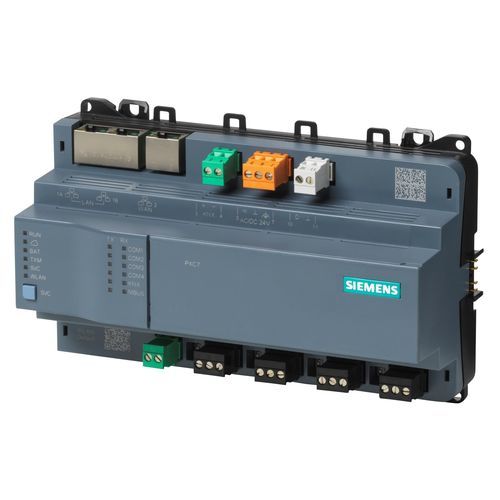

Interior building automation system PXC7.E400M

for air conditioning systemsfor building automation systemsfor access control

reely programmable automation station for HVAC and building service plants. Modular automation station and system controller for HVAC and building services systems Comprehensive management and system functions Freely programmable (close resemblance to CEN standard 11312). All function blocks, available in libraries, can be graphically connected. Allows for the direct connection of I/O modules TXM. Up to a load of 300 mA can be powered directly. Integrates up to 200 Modbus RTU and/or Modbus TCP data points or subsystems Integrates up to 120 BACnet MS/TP devices Web interface Remote access via Cloud Energy reserve (Supercap) to support real-time clock (7 days) Engineering and commissioning with the user-friendly tool ABT Site using graphical function charts BTL tested BACnet communication on IP (BACnet/IP and BACnet/SC) or BACnet MS/TP, in compliance with the BACnet standard including B-BC profile (Rev. 1.15) WLAN interface for engineering and commissioning Operating voltage AC/DC 24 V Communication BACnet/IP Digital inputs, number 1 Mounting DIN rail , Wall mounting Degree of protection IP20 Dimensions (W x H x D) 198 x 124 x 71 mm
