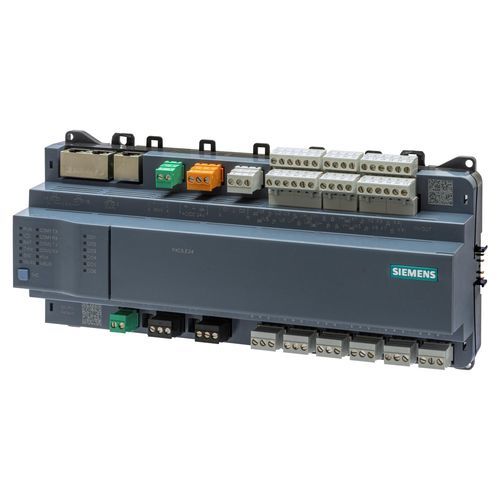

Interior building automation system PXC7.E400L
for air conditioning systemsfor building automation systemsfor access control

Interior building automation system - PXC7.E400L - SIEMENS Building Technology - for air conditioning systems / for building automation systems / for access control
Interior building automation system - PXC7.E400L - SIEMENS Building Technology - for air conditioning systems / for building automation systems / for access control
Add to favorites
Compare this product

Characteristics

Product applications
for interior
Function
for access control, for air conditioning systems, for building automation systems
Location
indoor
Market
building
Other characteristics
multifunction

Description

Controllore modulare. 5000 DP BACnet, 600 DP (fisici+Modbus). 1 DI. Max 64 TX I/O. 24V AC/DC. Web Server. WLAN. BACnet BTL/IP. BACnet/SC Nodo+Hub. ABT Go. Modbus RTU (n°4 RS485) e IP+ M-bus anche attraverso RS485 max 400 DP, KNX PL-Link. Routing MS/TP IP, max 60 per linea. Cloud. Building X. Operating voltage 28.8 V, DC 20.4…28.8 V24 V Power consumption 24 VA, 12 W Communication BACnet/IP, BACnet/SC Digital inputs, number 2 Relay outputs, number 6 Universal inputs/outputs, number 8 Current inputs 4-20 mA, number 8 Current outputs 4-20 mA, number 4 Super universal inputs/outputs, number 8 Mounting DIN rail , Wall mounting Degree of protection IP20 Dimensions (W x H x D) 270 x 124.5 x 69.4 mm
