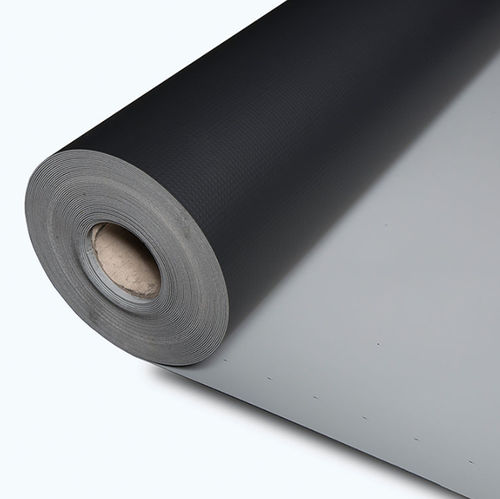

Protection waterproofing membrane Sarnafil® TS 77

flat roofrollfor renovation

Polymeric membrane for mechanically fastened roof waterproofing Sarnafil® TS 77-15 (thickness 1.5 mm) is a polyester reinforced, multi-layer, synthetic roof waterproofing sheet based on premium-quality flexible polyolefins (FPO) containing ultraviolet light stabilizers, flame retardant and an inlay of glass non-woven according to EN 13956. Sarnafil® TS 77-15 is a hot air weldable roof membrane formulated for direct exposure and designed to use in all global climatic conditions. Sarnafil® TS 77-15 is produced with an inlay of glass non-woven for dimensional stability and a polyester reinforcement for high strength. Sarnafil® TS 77-15 is provided for mechanically fastened roofing systems. Sarnafil® TS 77-15 has no built-in stress at the time of production and has a fully encapsulated carrier. The dimensional stability of Sarnafil® TS 77-15 is best in class. Usage Waterproofing membrane for: ■ Mechanically fastened roofing systems. Packaging Sarnafil® TS 77-15 standard rolls are wrapped individually in a blue PE-foil. Packing unit: see price list Roll length: 20.00 m Roll width: 2.00 m Roll weight: - 66.00 kg Advantages ■ Proven performance over decades. ■ Resistant to permanent UV irradiation. ■ High dimensional stability due to glass fleece inlay. ■ Resistant to permanent wind exposure. ■ Resistant to all common environmental influences. ■ Resistant to micro-organisms. ■ Compatible to old bitumen. ■ Hot air welding without use of open flames. Colour Surface: matt Colours: Top surface: window grey (nearest RAL 7040) Bottom surface: black
