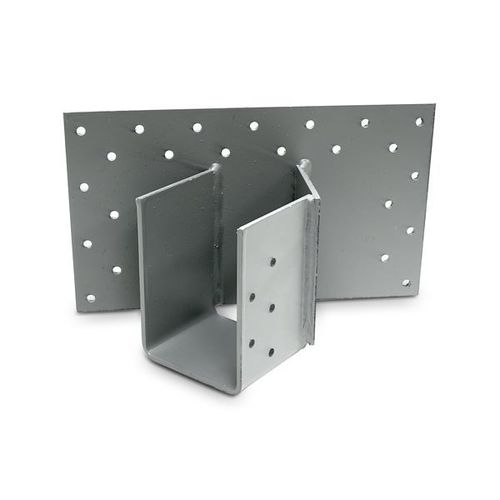

Wooden structure connector HHSUQ
stainless steel

wooden structure connector
wooden structure connector
wooden structure connector
wooden structure connector
wooden structure connector
Add to favorites
Compare this product


Characteristics

Applications
for wooden structures
Options
stainless steel

Description

The HHSUQ is a high-load, face-mount, truss-to-truss hanger designed to accommodate severe skews (45°–84°) for hip trusses, enabling a greater range of installation applications. Fastening the HHSUQ with Strong-Drive® SDS Heavy-Duty Connector screws makes installation fast and easy, while eliminating the inconvenience of bolted applications. Material Back plate — 3 gauge; stirrup — 7 gauge Finish Simpson Strong-Tie gray paint Installation Use all specified fasteners; see General Notes. The joist/truss end may be square cut or bevel cut. 3 7/8" minimum heel height. Strong-Drive SDS Heavy-Duty Connector screws supplied for all round holes. All multiple members must be fastened together to act as a single unit. Ordering Information Left or right skew must be specified
