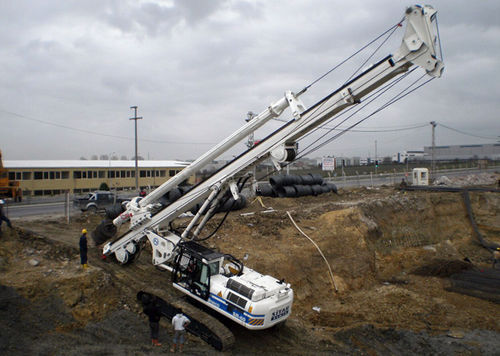

Diesel engine drilling rig SR-60

rotarydown-the-holeconstruction

Soilmec rigs are self-mounting, easily transportable and designed to giving the best drilling solutions. The hydraulic drilling rig SR-60 has been specially designed for suiting the following applications: - LDP cased bore piles with casing driven directly by rotary head or optionally by casing oscillator powered by the base carrier itself; - LDP deep uncased bored piles stabilized by drilling fluid or dry hole; - CFA (Continuous Flight Auger) piles by means of long auger string; Technical data Diesel engine T3/T4kW261/na. Weightt60 Main winchkN220 Min. transport weightt45 Max torquekNm212 CCS - Cylinder Crowd System pull up/downkN280/177 WCS - Winch Crowd System pull up/downkN270/220 LDP - LARGE DIAMETER PILE Max diameter (LDP)mm2000 Max depth (LDP)m77,5 CFA - CONTINUOUS FLIGHT AUGER Max diameter (CFA)mm1000 Max depth (CFA)m22
