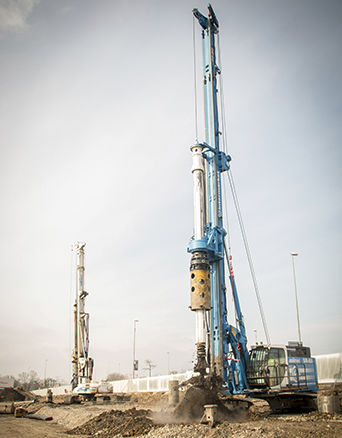

Diesel engine drilling rig SR-65

rotarydown-the-holeconstruction

Soilmec rigs are self-mounting, easily transportable and designed to giving the best drilling solutions. The hydraulic drilling rig SR-65 has been specially designed for suiting the following applications: - LDP cased bore piles with casing driven directly by rotary head or optionally by casing oscillator powered by the base carrier itself; - LDP deep uncased bored piles stabilized by drilling fluid or dry hole; - CFA (Continuous Flight Auger) piles by means of long auger string; The SR-65 is equipped with the DRILLING MATE SYSTEM (DMS) on 12' touch screen for monitoring and control of the rig performances and operating parameters. Technical data Diesel engine T3/T4kW276/283 Weightt65 Main winchkN220 Min. transport weightt49 Max torquekNm258,5 CCS - Cylinder Crowd System pull up/downkN280/140 WCS - Winch Crowd System pull up/downkN330/330 LDP - LARGE DIAMETER PILE Max diameter (LDP)mm3000 Max depth (LDP)m77,9 CFA - CONTINUOUS FLIGHT AUGER Max diameter (CFA)mm1200 Max depth (CFA)m25,9
