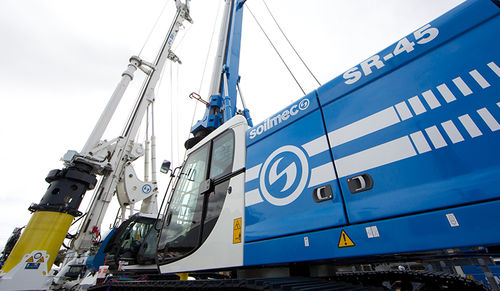

Diesel engine drilling rig SR-45

rotarydown-the-holeconstruction

Soilmec rigs are self-mounting, easily transportable and designed to giving the best drilling solutions. The hydraulic drilling rig SR-45 has been specially designed for suiting the following applications: - LDP cased bore piles with casing driven directly by rotary head or optionally by casing oscillator powered by the base carrier itself; - LDP deep uncased bored piles stabilized by drilling fluid or dry hole; - LHR (Low Head Room) – large diameter bored piles; - CFA (Continuous Flight Auger) piles by means of long auger string; - DP (Displacement Piles) / TCT (traction compacting tool); - TJ (Turbojet®) / TTJ (Twin Shaft Turbojet) - soil consolidation. The SR-45 is equipped with the DRILLING MATE SYSTEM (DMS) on 12' touch screen for monitoring and control of the rig performances and operating parameters. Technical data Diesel engine T3/T4kW201/201 Weightt37-38 Main winchkN165 Min. transport weightt40,6 c/w kelly Max torquekNm185 CCS - Cylinder Crowd System pull up/downkN207/140 WCS - Winch Crowd System pull up/downkN240/240 LDP - LARGE DIAMETER PILE Max diameter (LDP)mm3000 Max depth (LDP)m65,5 CFA - CONTINUOUS FLIGHT AUGER Max diameter (CFA)mm1000 Max depth (CFA)m24 DP - DISPLACEMENT PILE Max diameter (DP)mm350 Max TCT diameter (DP)mm400 Max pile depth (DP)m23 TJ - TURBOJET Max diameter (TJ)mm1000 Max depth (TJ)m23 LHR - LOW HEAD ROOM Max diameter (LHR)mm3000 Max depth (LHR)m23,7 Modular mast height range (LHR)m8,5/9,8
