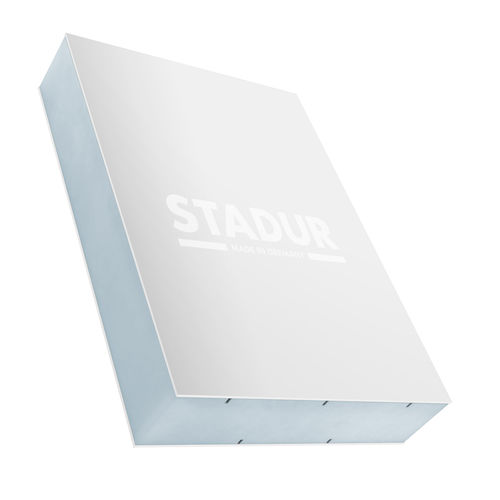

Facade insulating sandwich panel FB-1/SL
for doorplastic laminate facingextruded polystyrene core

Facade insulating sandwich panel - FB-1/SL - STADUR PRODUKTIONS GMBH & CO KG - for door / plastic laminate facing / extruded polystyrene core
Facade insulating sandwich panel - FB-1/SL - STADUR PRODUKTIONS GMBH & CO KG - for door / plastic laminate facing / extruded polystyrene core
Facade insulating sandwich panel - FB-1/SL - STADUR PRODUKTIONS GMBH & CO KG - for door / plastic laminate facing / extruded polystyrene core - image - 2
Facade insulating sandwich panel - FB-1/SL - STADUR PRODUKTIONS GMBH & CO KG - for door / plastic laminate facing / extruded polystyrene core - image - 3
Add to favorites
Compare this product

Characteristics

Applications
for facade, for door
Facing material
plastic laminate facing
Core material
extruded polystyrene core
Technical characteristics
thermally-insulated, high shocks resistance, for extreme temperatures, moisture-resistant, UV-resistant
Width

950 mm, 1,000 mm, 1,300 mm, 1,500 mm, 2,000 mm
(37 in, 39 in, 51 in, 59 in, 79 in)

Length

2,000 mm, 2,150 mm, 3,000 mm, 3,050 mm, 4,000 mm
(79 in, 85 in, 118 in, 120 in, 157 in)

Thickness

Max.: 44 mm
(1.73 in)

Min.: 20 mm
(0.79 in)

Description

Stadurlon sandwich elements consist of an extruded polystyrene core and, on both faces, top layers of Stadurlon of 0.8 mm, 1.0 mm, 1.3 mm, 1.5 mm or 2.0 mm thickness. Properties Very good thermal insulation, 10 years UV-guarantee,high impact resistance even in low temperatures, easy to process with usual wood and metal working tools, humidity-resistant, paintable, temperature resistance (-20°C up to +120°C) Examples of use Window panels, Door panels, Facade elements, Parapet elements, Container construction, Refrigeration rooms, Partition walls, Balcony cladding, Advertising signs, Exhibition construction, Boat and yacht building, marquee
