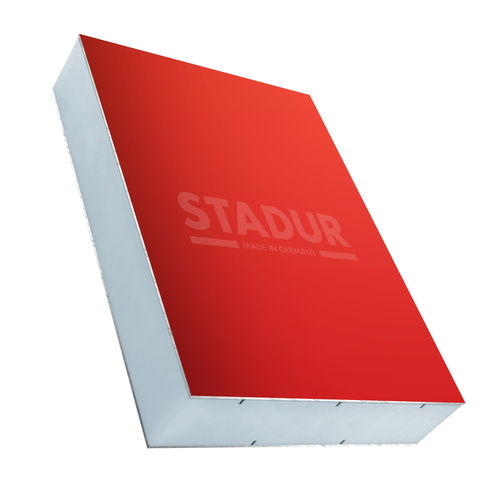

Facade insulating sandwich panel FB-4
for partition wallfor windowfor door

Facade insulating sandwich panel - FB-4 - STADUR PRODUKTIONS GMBH & CO KG - for partition wall / for window / for door
Facade insulating sandwich panel - FB-4 - STADUR PRODUKTIONS GMBH & CO KG - for partition wall / for window / for door
Facade insulating sandwich panel - FB-4 - STADUR PRODUKTIONS GMBH & CO KG - for partition wall / for window / for door - image - 2
Facade insulating sandwich panel - FB-4 - STADUR PRODUKTIONS GMBH & CO KG - for partition wall / for window / for door - image - 3
Add to favorites
Compare this product

Characteristics

Applications
for facade, for partition wall, for door, for window, for balconies
Facing material
2 aluminum faces
Core material
extruded polystyrene core
Technical characteristics
thermally-insulated, sound insulation, UV-resistant
Width

1,500 mm
(59 in)

Length

3,000 mm
(118 in)

Thickness

Min.: 20 mm
(0.79 in)

Max.: 44 mm
(1.73 in)

Description

Aluminium sandwich element Aluminium sandwich elements consist of an extruded polystyrene core and, on both sides, top layers of 0.8 mm, 1.0 mm, 1.5 mm or 2.0 mm thick aluminium. Properties Very good heat insulation, UV-endurance, good sound insulation values, high intrusion security, extremely high stability, extremely high stability, humidity-resistant Application examples Window panels, Door panels, Facade elements, Parapet elements, Partition walls, Balcony cladding, Exhibition construction, Exhibition construction, Boat and yacht building, Advertising signs, Container construction, Refrigeration rooms

Catalogs

No catalogs are available for this product.

See all of STADUR PRODUKTIONS GMBH & CO KG‘s catalogs
