Rectangular shower base BASIC BOARD FLAT

recessedabove floorstainless steel

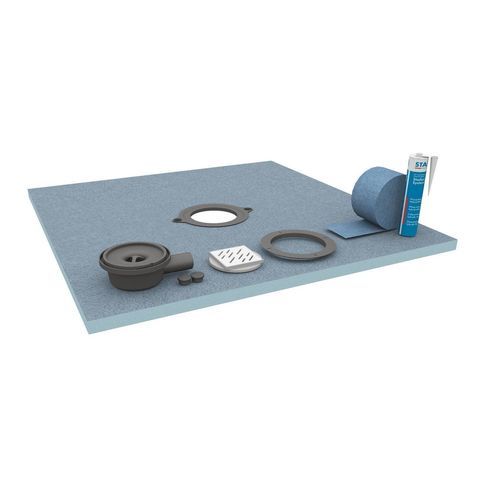

Floor-level shower element with point drainageThe Basic Board “Flat” shower element offers a quick and easy way to create floor-level shower areas in various designs. With a low installation height and a uniform gradient of around 2-3% to the floor drain, installation is effortless and without any obstructive edges. It offers the immediate option of laying ceramic or other floor coverings, ensuring flexibility and adaptability. Customised special designs up to a size of 2500 x 1500 mm open up unlimited scope for individual design concepts. An optional fire protection insert is available for public buildings, providing additional safety. A variety of grating designs give the element an attractive appearance, while height-adjustable variants allow additional design freedom.1x tileable shower element Basic Board Flat1x floor drain flat horizontal or floor drain classic vertical, with bayonet ring1x grate holder incl. “Hamburg” stainless steel grate2x rubber plugs to close the backfill openings1x Easy-Seal sealing set – consisting of: 4 linear metres of system sealing tape, 1 system inner corner, 4 linear metres of edge insulation strips, 1 cartridge of system adhesiveProperties: Guaranteed waterproof, suitable for all tile formats, wheelchair-accessible from tile size 5 x 5 cm, 100% dimensionally accurate, low dead weight, high stability, energy-efficient thermal insulation, 100% waterproof, 5-year guarantee, incl. 2-sided wall connection + edge insulation strips, safe standing due to integrated gradient, low installation heightApplication examples: New construction, renovation, bathroom refurbishment, public tenders (e.g. clinics + nursing homes, kindergartens), hotels, wellness, spaQuick and easy installationLow installation heightUniform gradient (2-3%) to floor drainImmediate option for ceramic or other floor coveringsCustomised special designs up to 2500 x 1500 mmOptional fire protection insert for public buildingsVarious grating designsHeight-adjustable variantsGuaranteed waterproofSuitable for all tile formatsWheelchair-accessible from tile size 5 x 5 cm100% dimensionally accurateLow dead weightHigh stabilityEnergy-efficient thermal insulation5-year guarantee2-sided wall connection + edge insulation strips includedSafe standing due to integrated gradient
