Rectangular shower base BASIC BOARD

recessedabove floorextruded polystyrene

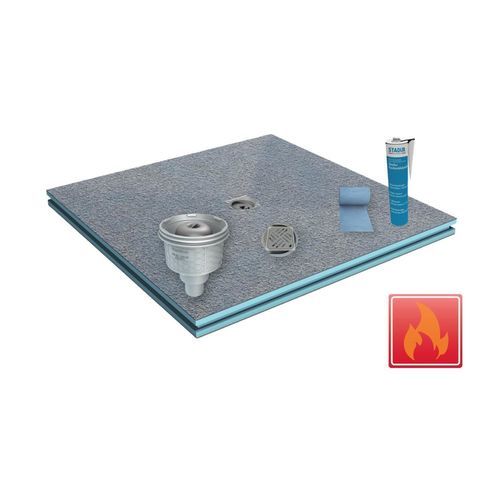

The Basic Board “fire protection” shower element offers a wide range of options for the uncomplicated installation of floor-level shower areas. Thanks to its low construction height, a uniform gradient of around 2-3% to the floor drain and the option of immediately laying ceramic or other floor coverings, it enables effortless installation without any unevenness. Customised designs up to a size of 2500 x 1500 mm offer unlimited design freedom for individual plans. A fire protection insert is available for use in public buildings. Various height-adjustable grating designs provide a wide range of design options. - 1x tileable shower element Basic Board fire protection - 1x floor drain fire protection – vertical - 1x grate holder, height and side-adjustable, incl. stainless steel grate 120×120 - 1x Easy-Seal sealing set – consisting of: 4 linear metres of system sealing tape, 1 system inner corner, 4 linear metres of edge insulation strips, 1 cartridge of system adhesive Properties: Guaranteed waterproof, suitable for all tile formats, wheelchair-accessible from tile size 5 x 5 cm, 100% dimensionally accurate, low dead weight, high stability, energy-efficient thermal insulation, 100% waterproof, 5-year guarantee, incl. 2-sided wall connection + edge insulation strips, safe standing due to integrated gradient, low installation height Application examples: New construction, renovation, bathroom refurbishment, public tenders (e.g. clinics + nursing homes, kindergartens), hotels, wellness, spa - Product: Floor-level shower element with point drainage - Fire protection insert available for public buildings - Low construction height - Uniform gradient of approx. 2-3% to the floor drain - Immediate installation of ceramic or other floor coverings possible - Customised designs up to 2500 x 1500 mm - Height-adjustable grating designs - Guaranteed waterproof - Suitable for all tile formats - Wheelchair-accessible from tile size 5 x 5 cm - 100% dimensionally accurate - Low dead weight - High stability - Energy-efficient thermal insulation - 5-year guarantee - Includes 2-sided wall connection and edge insulation strips - Safe standing due to integrated gradient - Low installation height
