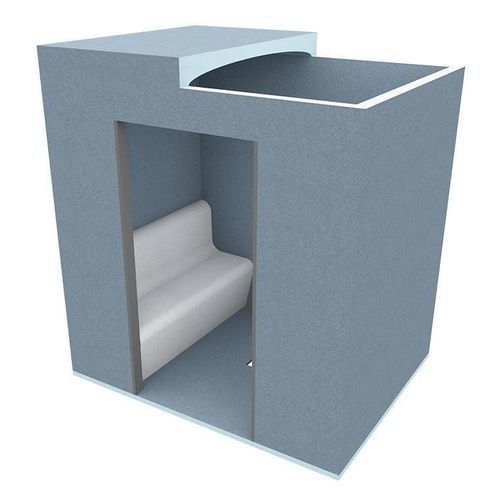

Kit steam room

tiled

Steam cabin as a kit Steam room consisting of extruded polystyrene with special coating on both sides to accommodate ceramic coverings, without door and without technology. Scope of delivery: - Steam cabin made of extruded polystyrene with special coating on both sides to accommodate ceramic coverings, without door and without technology. - Assembly kit, consisting of 50 mm floor element (possibly in several parts), incl. DN 50 floor drain – comfort. - Groove + tongue system to accommodate wall segments, all-round up to max. 2500 mm height. - Thickness of the wall elements: 80 mm – max. 3 x pieces / side walls. - Sufficient cartridge adhesive is included in the scope of delivery for on-site processing of the cubicle. - Incl. reinforcements for mounting: shower fitting / steam outlet / control panel (max. 3 x pieces). - max. 2 x reinforcements for mounting glass front. - Circumferential reinforcement profiles for fastening the roof (reinforcement: approx. 20 mm, integral foam). - Incl. one bench max. 2.5 meters long. - Roof element made of extruded polystyrene rigid foam – tunnel or vaulted roof design. - Optional: roof element as a sandwich made of extruded rigid polystyrene foam and GRP cover layers on both sides. - Includes max. 5 x cut-outs for temperature sensors, LED spotlights (up to diameter: 40 mm) and max. 1 x cut-out for ceiling outlet). Important: This is not a standard product. A custom-made product is produced to suit the individual installation situation. Kit contents: - Kit, consisting of 50 mm floor element (possibly in several parts), incl. DN 50 floor drain – boiler comfort. Tongue and groove system to accommodate wall segments, all-round up to max. 2500 mm height. Thickness of the wall elements: 80 mm – max. 3 x pieces / side walls. Sufficient cartridge adhesive is included in the scope of delivery for on-site processing of the cabin. - Incl. reinforcements for mounting: shower fitting / steam outlet / control panel (max. 3 x pieces) max. 2 x reinforcements for mounting glass front circumferential reinforcement profiles for fastening the roof (reinforcement: approx. 20 mm, integral foam). - Incl. one bench seat: Type: O – max. length 2.5 meters. - Roof element made of extruded rigid polystyrene foam – designed as a tunnel or vaulted roof. Optional: Roof element as a sandwich made of extruded rigid polystyrene foam and GRP cover layers on both sides. Includes max. 5 x cut-outs for temperature sensors, LED spotlights (up to diameter: 40 mm) and max. 1 x cut-out for ceiling outlet). Technical characteristics / specifications: - Material: Extruded polystyrene with special coating - Wall thickness: 80 mm (max. 3 pieces per side wall) - Floor element thickness: 50 mm - Max. height: 2500 mm - Bench: max. 2.5 meters long - Roof: tunnel or vaulted design, optional sandwich with GRP cover layers - Includes reinforcements for mounting fittings and glass front - Includes cut-outs for sensors and spotlights - Custom-made to suit installation situation
