Aluminum bench

COR-TEN® steelstainless steelconcrete

Presentation

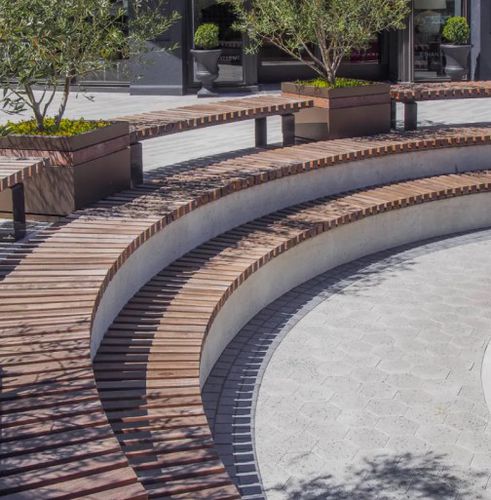

The Solid Curved Top Seats are modular bench seating elements designed to be installed on a separate, load-bearing base (e.g. concrete plinth). Modules can be joined to form a continuous seating run. Fixings are concealed by the structure for a clean aesthetic finish.

Main characteristics
Available in Linear or Crosswise configurations. Slats are solid and robust and can be supplied in hardwood (Cumaru, Jatoba, Louro, Douglas), Accoya or recycled Cloudy Grey. Slats are integrated into the patented Streetlock™ comb with anti-theft stainless steel flange nuts. The module is fixed flush to the supporting structure for hidden fixings.

Accessory options

• Backrest (optional)
• Armrest (optional)

Structure materials - finishes

• Galvanised steel
  Material: Galvanised steel
  Colour: Silver grey with spangle
  Appearance: Slightly textured
  Patination: Fades in 1–6 months
  Service life: approx. 50 years
  Maintenance: None
  Recyclable: No
• Powder coating
  Finish: Two-layer powder coating
  Applicable substrates: Steel, aluminium, Corten steel, galvanised steel
  Colours: RAL colours, DB grey (special colours on request)
  Appearance: Smooth
  Service life: approx. 10 years
  Maintenance: Annual rinse with fresh water; mild alkaline cleaner if required
  Notes: Special colours available on request

Seat slat materials - options

• Cumaru | FSC-100%
  Material: FSC® 100% hardwood
  Content: Virgin
  Source: FSC® managed tropical forests
  Section: Solid 7x7 cm (bench types, various)
  Max length: 300 cm
  Colour: Reddish brown
  Appearance: Smooth, knot-free
  Greying time: 2–3 years
  Density: 1150 kg/m³
  Service life: > 30 years
  Maintenance: None, sanding possible
  Recyclable: Yes
  Certification: FSC®
• Jatoba | FSC-100%
  Material: FSC® 100% hardwood (details in material sheet)
• Accoya | FSC-Mix-70%
  Availability: Europe only
  Material: Modified wood, FSC® certified
  Content: Virgin
  Source: FSC® managed forests (New Zealand)
  Section: Solid 7x7 cm or Rough&Ready 7x15 cm
  Max length: 300 cm
  Colour: Yellow-silver
  Appearance: Smooth, knot-free
  Greys in: 1–2 years
  Density: 512 kg/m³
  Service life: 30–40 years
  Maintenance: None, sanding possible
  Recyclable: Yes
  Certification: FSC® Mix 70%
• Cloudy Grey - Recycled
  Material: Recycled plastic (100% recycled household LDPE)
  Section: Solid 7x7 cm
  Max length: 120 cm
  Colour: Marbled grey with blue tones
  Appearance: Coarse and matt
  Colour stability: Stable
  Density: 1060 kg/m³
  Service life: 20–30 years
  Maintenance: None
  Recyclable: Yes
• Douglas | FSC-Mix-70%
  Material: FSC certified softwood (details in material sheet)
• Louro | FSC-100%
  Material: FSC® 100% hardwood (details in material sheet)

Technical features

• Patented Streetlock™ comb for slat integration.
• Anti-theft stainless steel flange nuts for secure fixing of slats.
• Module designed to be placed on a separate, stable base (e.g. concrete plinth); modules can be linked to create continuous seating.
• Structure conceals fixings for a refined finish.
• Configurable product: choice of structure material, seat material, dimensions and accessories (backrest, armrest).

Technical characteristics / specifications

• Height (example default value): 9 cm
• Length (example default value): 200 cm (options up to 300 cm depending on material)
• Width (options): 40 cm (default), 50 cm, 60 cm
• Slat sections (examples): Solid 7x7 cm; Rough&Ready 7x15 cm (depending on material)
• Max slat length for hardwood: 300 cm (some recycled configurations limited to 120 cm)
• Anti-theft system: stainless steel flange nuts integrated into the Streetlock™ comb
• Available accessories: backrest, armrest
• Product configurable/customisable (drawings and remarks can be provided with request for quotation)
