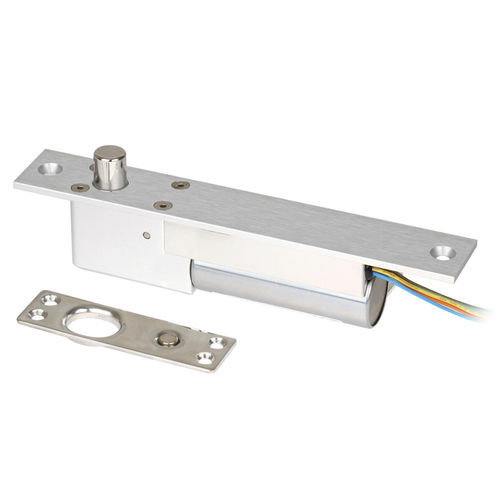

Electronic lock SD-997B-GBQ

magneticdoor1 point

SECO-LARM Electric Deadbolts are designed for hollow metal door frames. They are not recommended for wooden door frames. However, door can be wood or metal. FEATURES * Adds concealed deadbolt security to most wood or hollow metal doors, with the added convenience of electrical operation. * Fail-safe operation (unlocks if power is lost). * Status sensor (Door open/close monitor): SPDT, 500mA@12VDC(NO/NC/COM). * Adjustable door lock delay timer (0, 2.5, 5, or 9 sec). * Control wire allows release without cutting unit's power. * Magnetic switch determines door position for positive locking. * Solenoid attempts to lock several times and then shuts off if door not closed properly to prevent burning out. * Use with an optional digital keypad for high security without a key. * Easily connects to ENFORCER Access Keypads. * Suitable for office-type applications. * Shallow design for use with most metal door jambs. * No limiting installation orientation. * Powered by a solenoid. * Stainless steel for strength and long life. Operatiing lifetime: 1,000,000 operations. * Plastic material Tefulon Polymonochlorotrifluoethylene. * Power 12/24 VDC (auto sensing), 900mA@12VDC / 440mA@24VDC on activation, 340mA@12VDC / 180mA@24VDC standby. * Over-current protection 1.5A. * Stainless steel bolt, 5/8 in diameter, 5/8 in throw. * Lock body (faceplate) dimensions - 7-7/8 x 1-5/16 in (200 x 32 mm). * Lock body (cavity) dimensions - 5-3/4 x 1-1/8 x 1-1/2 in (145 x 28 x 38 mm). * Strike plate dimensions - 3-9/16 x 1 x 1-1/8 in (90 x 25 x 33 mm). * Plug: Special conic cavity stainless steel (thickness 1.5mm~1.8mm).
