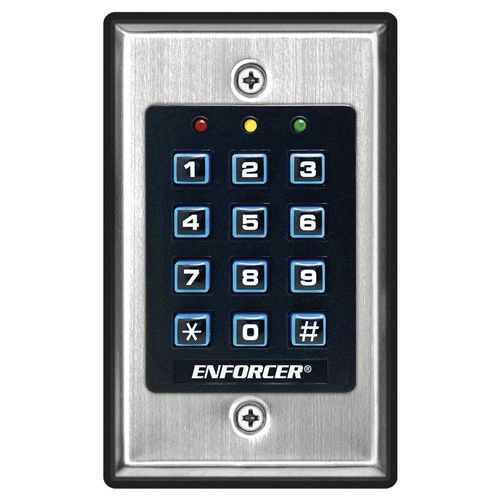

Access control code keypad SK-1011-SDQ

wall-mountedcommercial

The SK-1011-SDQ is the ideal keypad for office, commercial, and home security installations. This self-contained security keypad has a built-in 5-Amp relay output for maximum flexibility when connecting to electronic door strikes, door alarms, door chimes, alarm control panels, or other security and access control applications. The output can be programmed for timed (1-999 seconds) or ON/OFF operation. The SK-1011-SDQ output can be programmed for up to 1000 user codes. All programming and code information is stored in non-volatile EEPROM memory to protect the data in case of power loss. FEATURES * 12-24VDC Operation * Up to 1,000 user codes * Up to 50 visitor codes, programmable for one-time or limited-time use (1-99 hours) * 1 Output: Form C relay, 1A@30VDC max. * Output duration programmable up to 99,999 seconds (nearly 28 hours) * Tamper output: N.C. 50mA@24VDC max. * All features programmed directly from the keypad * For single-gang box (surface-mount box included)
