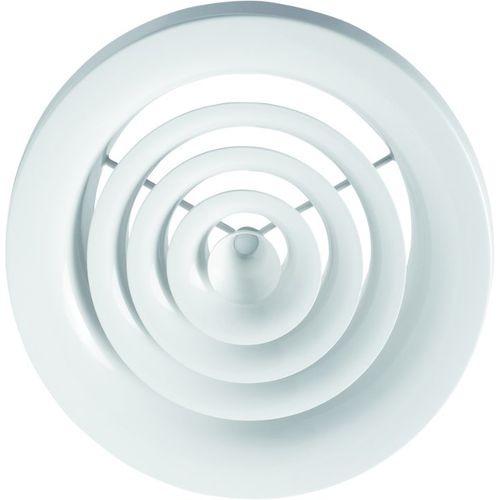

Ceiling displacement air diffuser KONIKA

circular

Circular ceiling cone diffuser suitable for offices and shops The Konika is a supply and exhaust air diffuser designed for ceiling assembly. It provides a versatile solution and is suitable for offices, shops and similar premises. It provides radial, horizontal air discharge in ceiling heights up to 4m. It is intended for air supply with temperature difference up to ±12 K from room temperature. The Konika allows for direct connection to a circular duct by the use of the Konika bar and is suitable for both cool and warm air. The Konika has high induction, which allows a maximum air temperature difference of dT 12 K. It can also be used for air extraction. The Konika is manufactured from steel with a white powder-coated finish and is available in a range of different sizes. The correct adjustment requires a length of straight duct which is 4 times the duct diameter in front of the THOR plenum box. Between the Konika diffuser and the THOR plenum box, there needs to be a length of straight duct that is 1 times the duct diameter. The Konika is a supply and exhaust diffuser that is designed for ceiling assembly suitable for offices, shops and similar premises. Round ceiling diffuser for comfort zones with fixed slats. Suitable for supply and exhaust air. Horizontal, radial air distribution pattern. For the installation in all types of suspended ceilings. A Mounting bridge and central screw for fastening are included. Diffuser and mounting bridge are made of galvanized steel. The diffuser is available as standard in RAL9003 (signal white); other RAL Classic colors are available on request. The use of a junction box or regulating element is recommended.
