Ceiling air diffuser TSO
square

ceiling air diffuser
ceiling air diffuser
Add to favorites
Compare this product


Characteristics

Installation
ceiling
Shape
square

Description

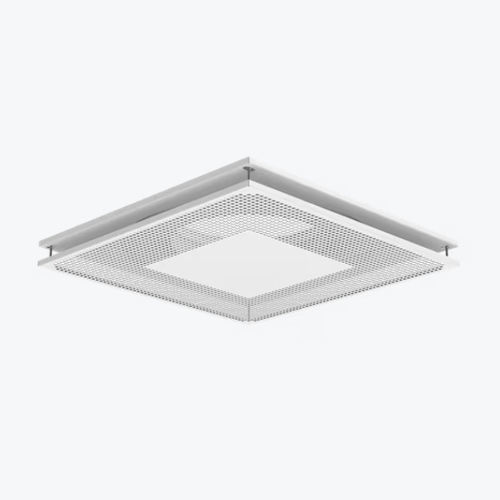

Description TSO is a square perforated ceiling diffuser, with THOR plenum box as an accessory. The TSO can be shielded with the SSO accessory. The TSO is a supply and exhaust air diffuser designed for ceiling assembly. The TSO has a perforated front plate and a connection sleeve fitted with a rubber seal tested for airtightness. The TSO has high induction which allows a maximum air temperature difference of dT ±10 K. The distribution pattern can be altered with the SSO shielding accessory to one-, two- or three-way distribution. The distribution unit is adjustable. Design The TSO is manufactured from steel with a white powdercoated finish (RAL 9003, gloss 30%) and is available in the following sizes: ø 100, ø 125, ø 160, ø 200, ø 250, ø 315 and ø 400. This device can be used for extract air. Mounting The diffuser is installed directly onto the spiral duct and fixed with pop rivets. If the diffuser is fitted to a THOR plenum box, there must be a straight length, 4 times the duct’s diameter, in front of the THOR plenum box. Dimensions and weights Weight 1kg
